4160 PROJECTOR DOWSER

Available on request, please enquire for availability.

Digital projectors are used on shows everywhere but they often have a problem that is difficult to overcome:  When they fade out, they still project light, called “video black”, and this small amount of light is easily visible during a stage blackout.

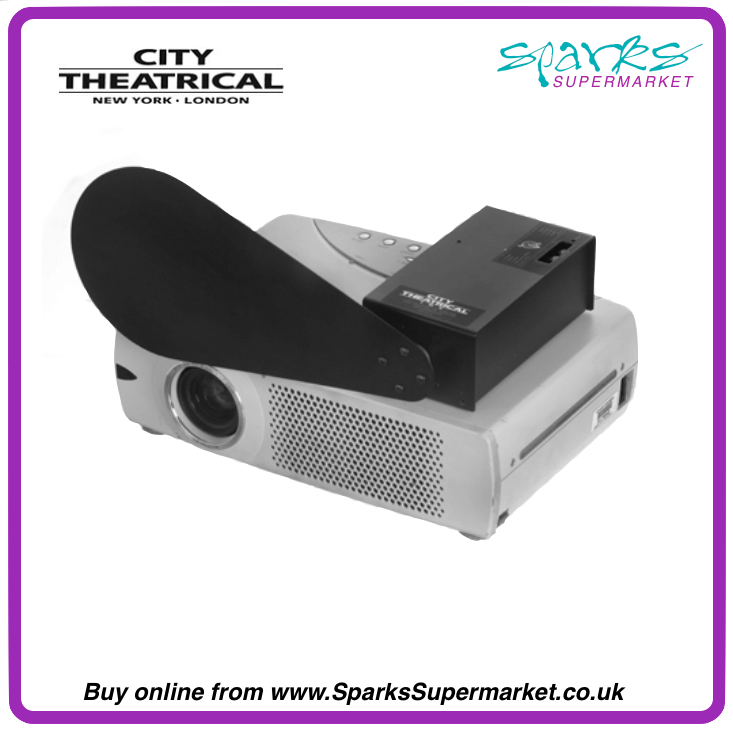

City Theatrical's Projector Dowser is a simple DMX (or contact closure) controlled flag that can be closed in front of the projector’s lens when you need a complete blackout.  An included mounting plate allows a variety of hanging positions to suit your production’s needs.

Projector Dowser 4160

Power Supply for up to two Dowsers or irises  2199

Features:

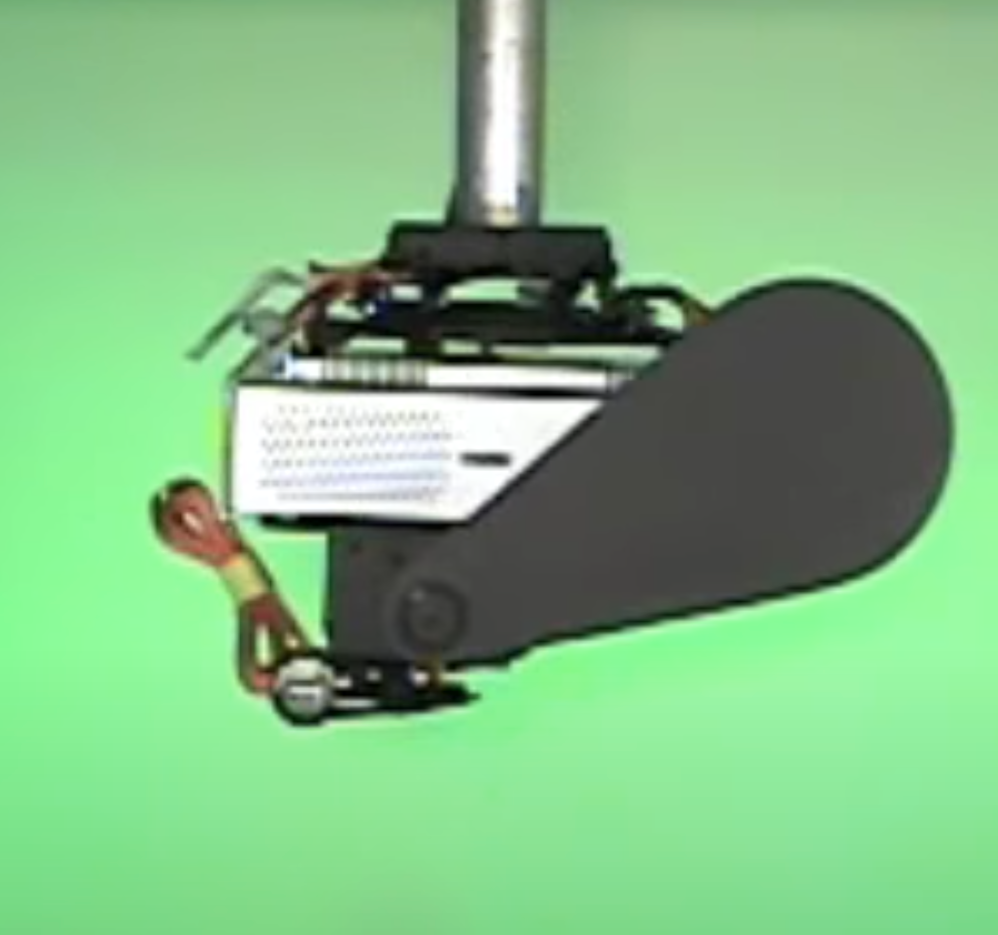

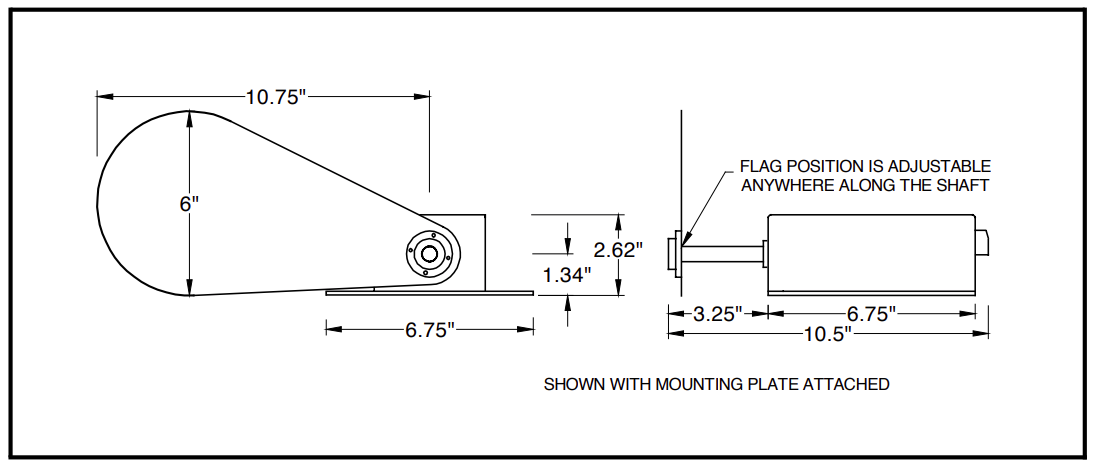

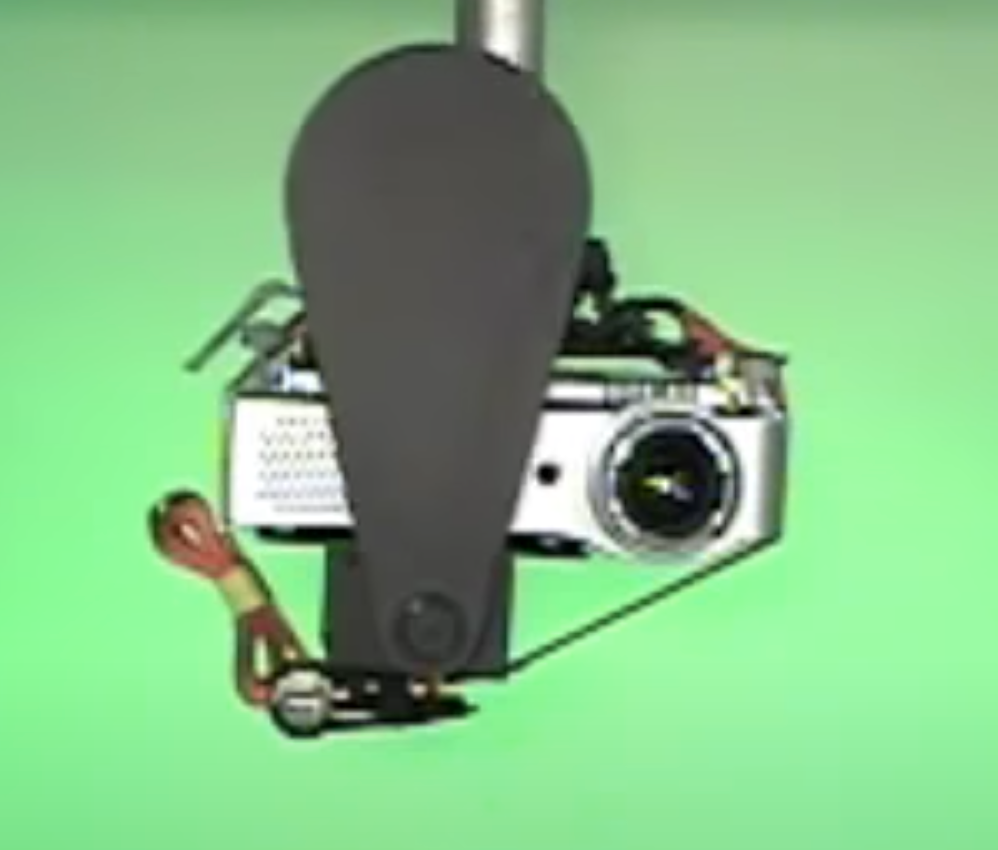

• A large flag is adjustable on the motor shaft to allow the Dowser to be placed above, below, or to either side of the projector.

• Travel of the flag is DMX adjustable within a range of 90 degrees. (Full 90 degree travel takes under one second at full speed.)

• Large flag may be trimmed with heavy shears or tin snips to suit your application, if necessary.

• Connects via industry standard DMX / accessory power 4 Pin XLR cables.

• Compatible with CTI # 2199 Power Supply, or Wybron Forerunner™, Chroma Q™, Rainbow™, Spectra Q™ and Rosco PS™ power supplies.

• Dry closure control input for operation without DMX provides local manual control, or connection to a show controller.

• LED status indication

• Uses a single DMX channel, addressable as any DMX value from 1 to 512. Addressing is controlled by a standard array of three 10 digit BCD switches, configured as 100s, 10s, and 1s

• Comes with accessory kit including an accessory plate, velcro pad kit, allen key, and rubber feet.

Power: 24VDC, 250mA Weight: 1.4kg

• Made in U.S.A.
