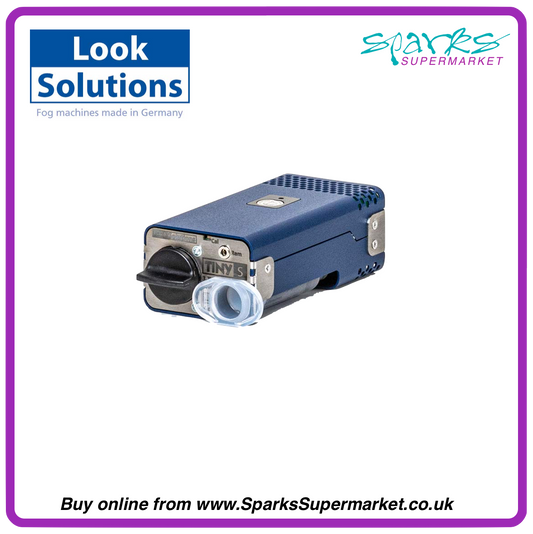

The latest version of the successful Tiny series

In addition to the fluid reservoir also the battery can be screwed directly into the machine.
Thus, any external cable or fluid tube is not longer needed and the Tiny S consists of only one component.

Smallest dimensions and very light weight,
Easy one-hand-operation
Battery supplies energy only when necessary to increase the Standby time
Warm up time only 1 second
Continuous output
Fogging time programmable
Control via start button, cable remote and radio remote
Vaporizer can easily be changed if necessary
Minimal fluid consumption (0.5 ml/min. at continuous output)

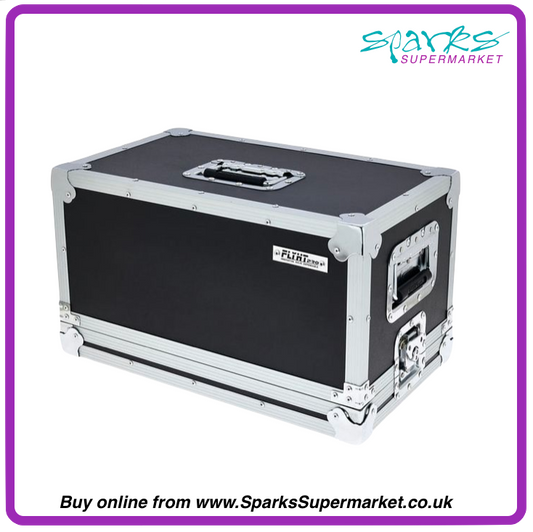

Supplied in a case for transport and storage
Made in Germany

Technical data

Procedure

Vaporizing fog generator

Power requirement

30 Watt

Voltage

3.7 V/1500 mAh, LiIon

Warm up time

1 second

Fluid consumption

0.65 ml/min. at cont. output

Fluid tank capacity

5 ml

Fog output

Continuous output with battery pack approx. 10 minutes

Fogging time

programmable, approx. 15 min. continuous output or 200 x 5 second bursts

Control

2.5 mm mini stereo jack socket

Dimensions (L x W x H)

10.3 x 5.1 x 3.5 cm

Weight

250 g incl. battery and fluid tank
