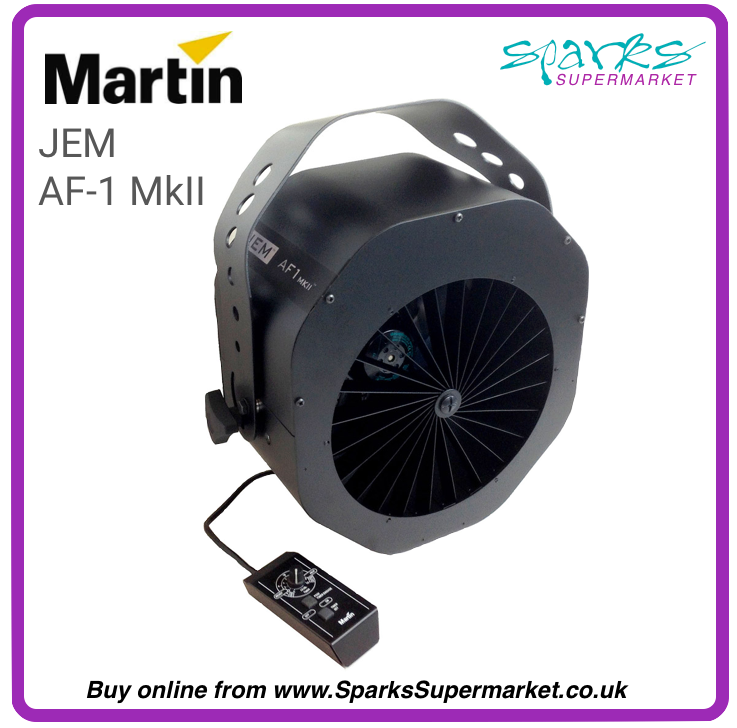

Jem Af-1 Fan Mkii

The JEM AF-1 MkII is Martin's industry-standard compact fan which sets the benchmark for effect fans.

The JEM AF-1 MkII is more responsive and even more versatile than its original predecessor the AF-1. Using a 12” sealed axial motor, with variable speed, the AF-1 is responsive even at low speeds while remaining silent, only producing 70 dBA at maximum speed.

The AF-1 MkII has integrated DMX or by using the included remote control to control, it is the ideal fan for a large variety of indoor or outdoor applications from touring and stage to theme parks, cruise ships and much more.

FEATURES

• 12” Sealed motor – resists moisture
• Variable speed range and control
• Instant On
• Low minimum speed
• Integrated DMX
• Included analog timer remote control
• Reduced motor noise at low speeds, 70 dBA at maximum
• Floor standing or truss mounting
• Broad regulatory compliance

PHYSICAL
Width: 320 mm (12.6 in.)
Width with multi-function bracket: 397 mm (15.6 in.)
Height: 350 mm (13.8 in.)
Height with multi-function bracket: 407 mm (16.0 in.)
Depth: 176 mm (6.9 in.)Weight: 8.5 kg (18.7 lb.)

PERFORMANCE
Maximum airflow: 1815 m3 (65,000 ft3 ) hour
CFM: 1083 CFMFan speed: 200-2500 rpm
Maximum noise level: 70 dBA

CONTROL AND PROGRAMMING
Control options: Included analog timer remote control, DMX, test switch
Control parameters: Instant or timer-controlled output
Fan: Variable output, 0-100%
Remote cable: 3-pin XLR, includes 3 m (9.8 ft.), maximum length 50m (164 ft.)
DMX channels: 1
DMX compliance: ANSI E1.11 - USITT DMX512-A

INCLUDED ITEMS

Analog timer remote control, 3 m (9.8 ft.) cable: P/N 92765022

Power input cable, EU, IEC C13 female, stripped ends, 1.5 m (4.9 ft.): P/N 11501012Multi-function bracket and hardware

92615010
