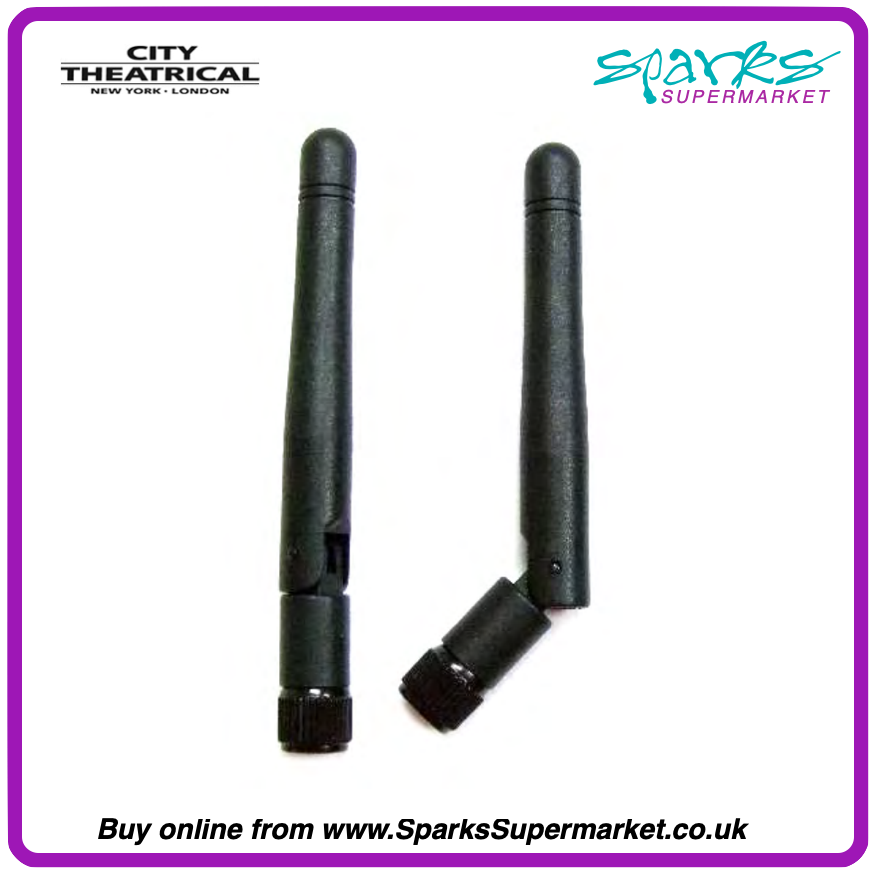

5729 Antenna, 2dBi Indoor Omni 2.3"

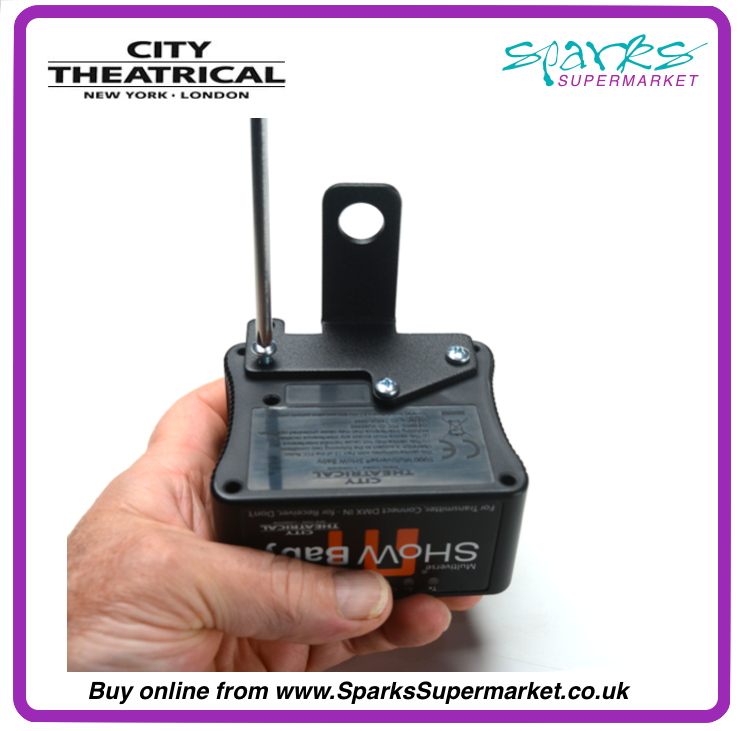

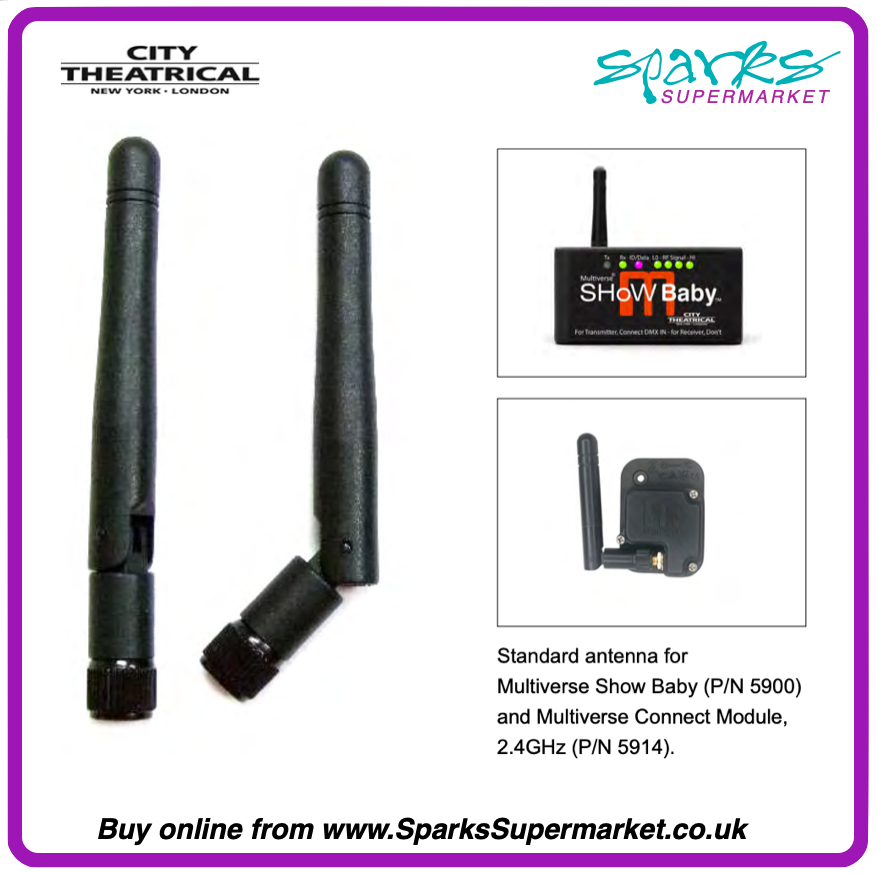

The 2dBi Indoor Omni Antenna, 2.3” (P/N 5729) is the standard antenna for City Theatrical’s Multiverse® SHoW Baby® (P/N 5900) and Multiverse Connect Module, 2.4GHz (P/N 5914).

Its connection is made using a RP-SMA male plug. The 2dBi Indoor Omni Antenna, 2.3” allows the user to receive or broadcast on the 2.4GHz radio band (for worldwide use).

Physical
Length (fully extended) 86mm (3.4 in)
Length (bent at 90°) 60mm (2.3 in)
Width (bent at 90°) 31mm (1.2 in)
Thickness (widest part) 10mm (0.4 in)

Electrical
Antenna Type Dipole antenna
Frequency Range 2400~2480MHz
V.S.W.R. < 2.0
Impedance 50 OHM
Type of Radiation Omni-directional
Electrical Wave ¼
Frequency/Gain 2400~2480MHz: 2dBi
Polarization Vertical
Identifying Connector RP-SMA Male

Product Information
Color Black
Use Environment Indoor
Operating Temperature Range -40°C to + 70°C
IP Rating IP50
Warranty One year
