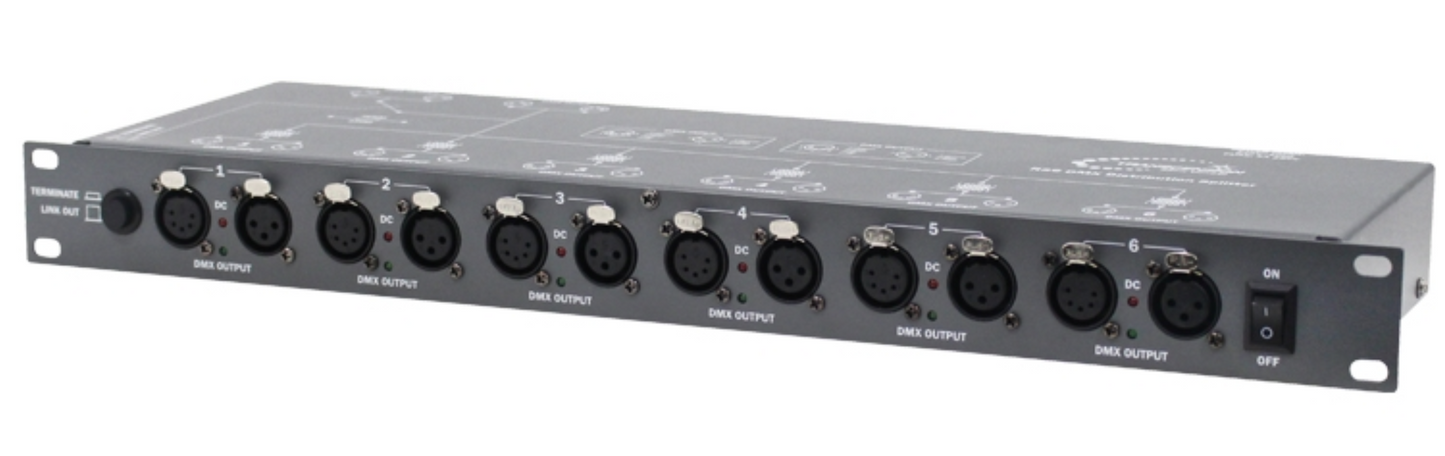

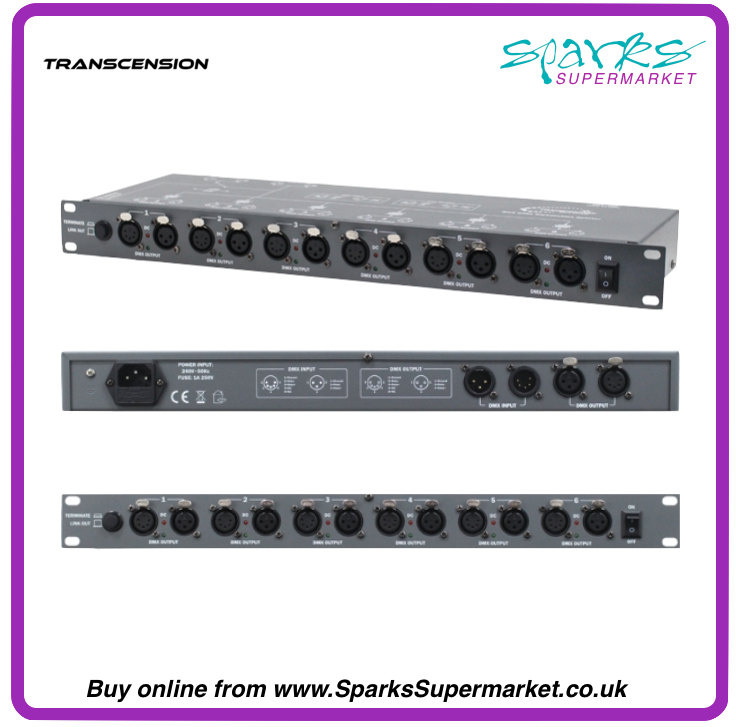

6 WAY DMX SPLITTER RS6 RACKMOUNT

A 6 way DMX distribution splitter featuring one input, link output and 6 outputs each electronically isolated from both each other and from the input.

The RS6 can be used to simplify DMX cabling allowing lighting systems to be cabled in a star format while working to prevent data errors. Each of the six outputs features an independent driver coupled with DC and DMX indicator LEDs.

Housed within a 1U 19”, rack mount chassis.

Features

• 6 x 3-Pin and 5-Pin XLR outputs
• Link output with switchable termination facility
• 1U, 19” rack mount chassis
• IEC power input

• Power supply: 240V, 50Hz
• Fuse: 1A 250V
• Dimensions (H x W x D): 44 x 483 x 145mm
• Weight: 2.8kg
