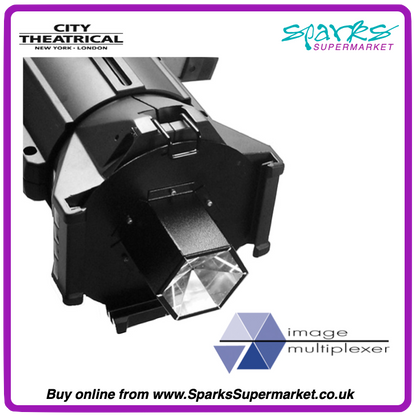

City Theatrical Image Multiplexer™ – Six Image Projection Accessory for Source Four®

The City Theatrical Image Multiplexer™ is a creative beam control accessory designed for ETC Source Four® and other profile spotlights with a 6¼" colour frame slot. Using six precision prisms, it transforms a single projected image into six identical images, creating striking kaleidoscope-style effects, patterns and abstract projections.

Ideal for theatre, concerts, live events and creative lighting installations, the Image Multiplexer allows lighting designers to create complex visual effects from a single fixture. When combined with gobos, gobo rotators and coloured lighting filters, it can produce everything from subtle textures and scenic effects to dynamic moving projections.

Product Identification

Manufacturer: City Theatrical
Product: Image Multiplexer™
Part Number: 1450
Product Type: Multi-Prism Beam Control Accessory

How It Works

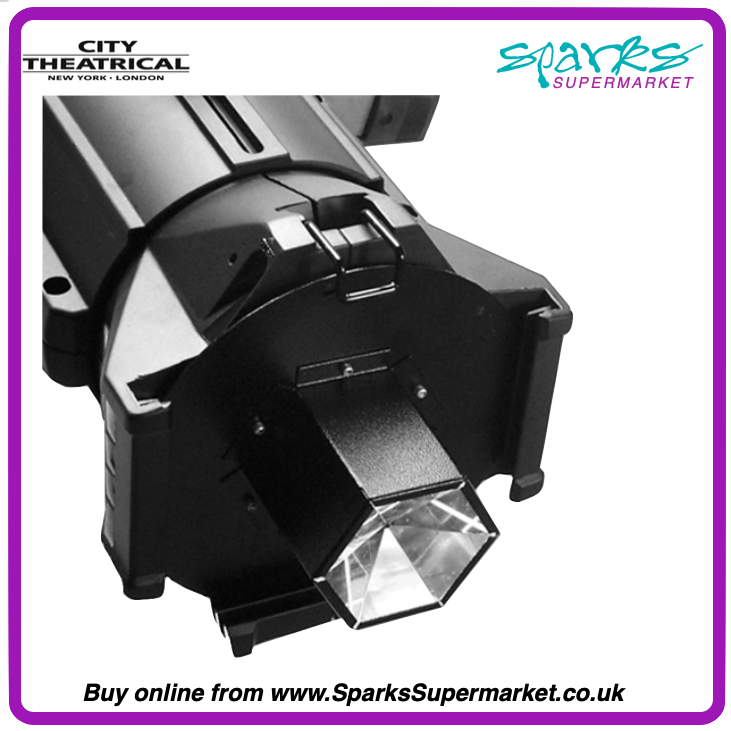

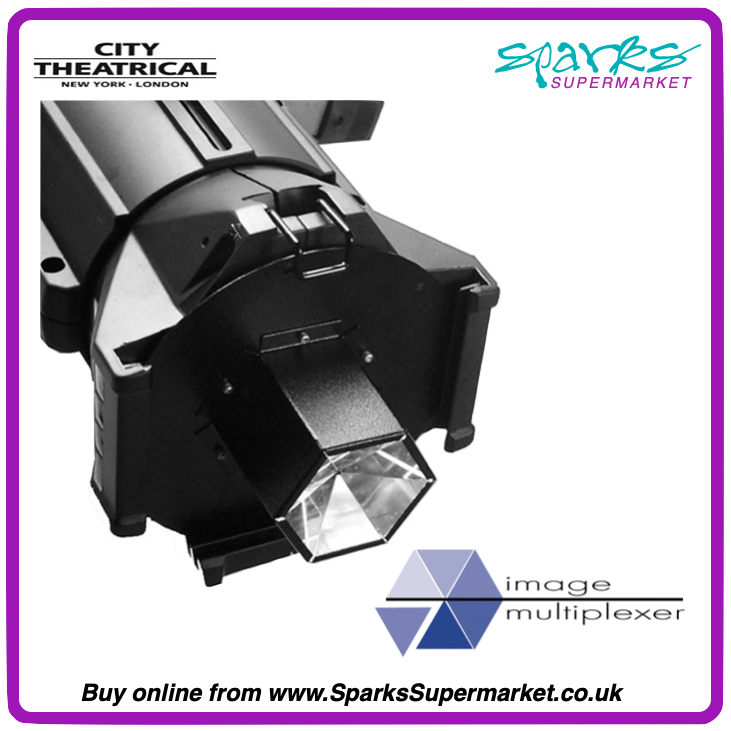

The Image Multiplexer uses six integrated prisms to split a single projected image into six separate images. Simply insert it into the fixture's standard 6¼" colour frame slot and the projected beam is transformed without requiring any modification to the lighting fixture.

When used with static or rotating gobos, the Image Multiplexer creates striking multi-image projections. Adding a rotating gobo introduces movement, creating even more dynamic and creative lighting effects.

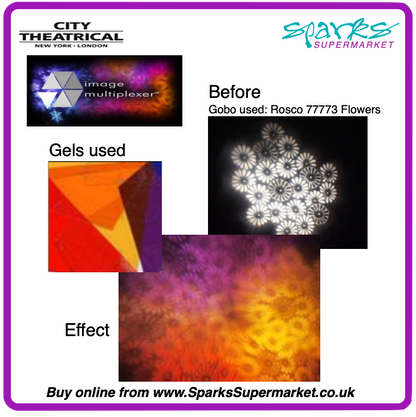

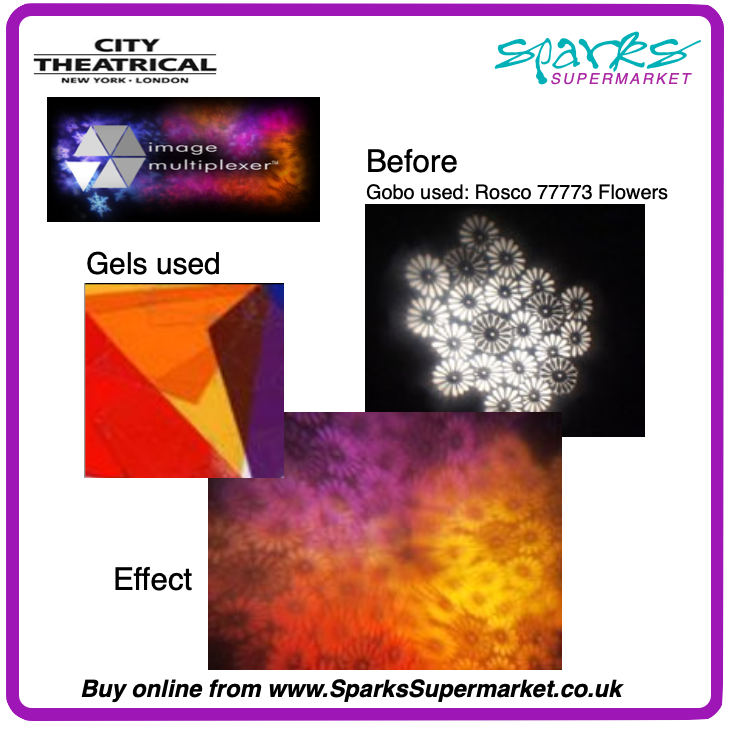

Creative colour effects can also be achieved by attaching small pieces of different coloured lighting filters to the front of the Image Multiplexer. The coloured gels interact with the prism system to create blended colour variations across the projected images, allowing unique multi-colour effects from a single lighting fixture.

Creative Lighting Possibilities

Originally developed to create a kaleidoscope-style lighting effect, the Image Multiplexer has become a popular creative tool for lighting designers looking to produce complex effects from simple setups.

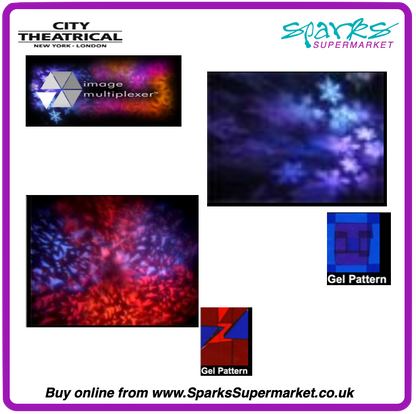

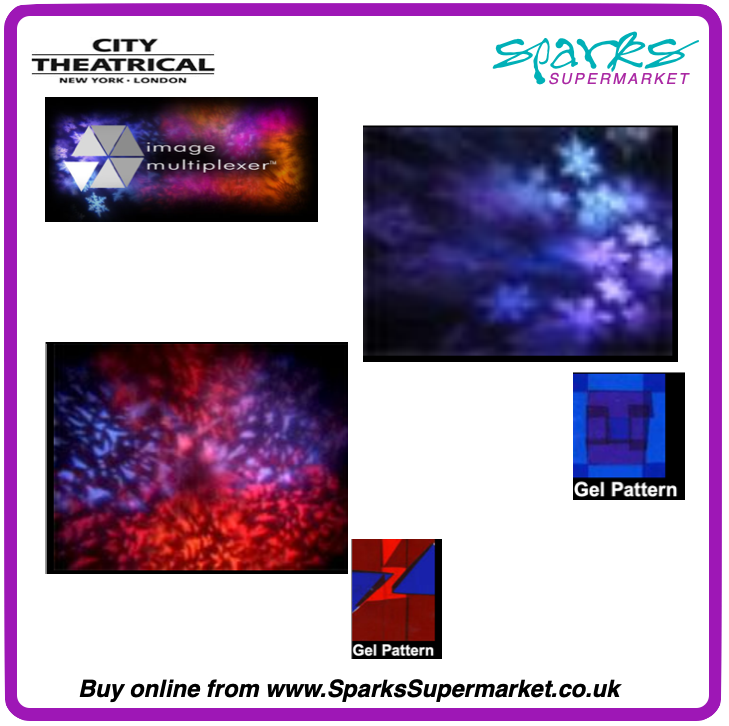

A single profile fixture combined with an Image Multiplexer, gobo and colour filters can create:

• Kaleidoscope-style projections
• Multi-image gobo effects
• Abstract textures and patterns
• Scenic and cyc projections
• Moving effects when combined with rotating gobos
• Unique colour blends using gel combinations

The Image Multiplexer encourages experimentation, allowing designers to create distinctive lighting effects without the need for multiple fixtures.

Specifications

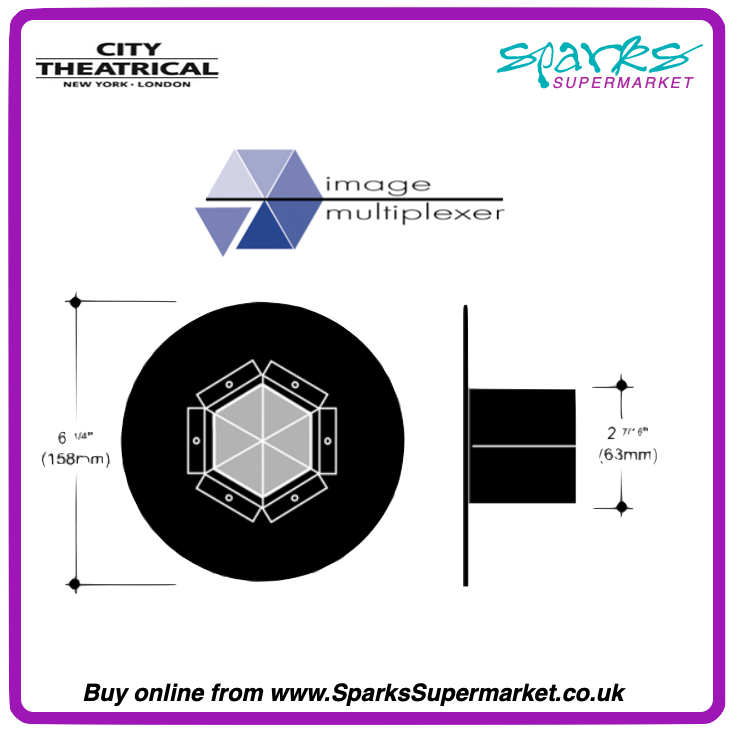

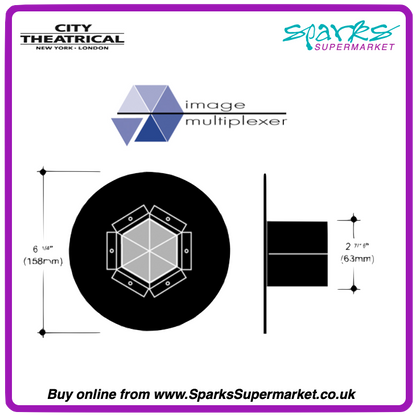

Compatible Fixtures: ETC Source Four® and other profile spotlights with a 6¼" colour frame slot
Mounting: Colour frame slot accessory
Optical System: Six integrated prisms
Image Multiplication: Six projected images
Compatible Accessories: Static gobos, rotating gobos and coloured lighting filters

Applications

Suitable for:

• Theatre productions
• Concert lighting
• Live events
• Scenic projection
• Dance productions
• Architectural lighting
• Exhibition installations
• Creative stage effects
• Television and film lighting

Features

• Creates six images from a single projected beam
• Precision six-prism optical system
• Fits directly into a standard 6¼" colour frame slot
• Compatible with ETC Source Four® profile fixtures
• Works with static and rotating gobos
• Creates kaleidoscope and abstract lighting effects
• Allows creative colour effects using lighting gels or with a colour LED fixture
• No fixture modification required
• Genuine City Theatrical accessory

Compatible Accessories

For maximum creative flexibility, combine the Image Multiplexer with:

• Static gobos

• Rotating gobos

• Gobo rotators

• Coloured lighting filters (gel scraps or small gel pieces applied to the accessory)

Alternative References

• City Theatrical Image Multiplexer
• Multi Prism
• Multiprism
• Six Image Prism
• Source Four Image Multiplexer
• Gobo Multiprism
• Projection Prism
• Beam Control Accessory
