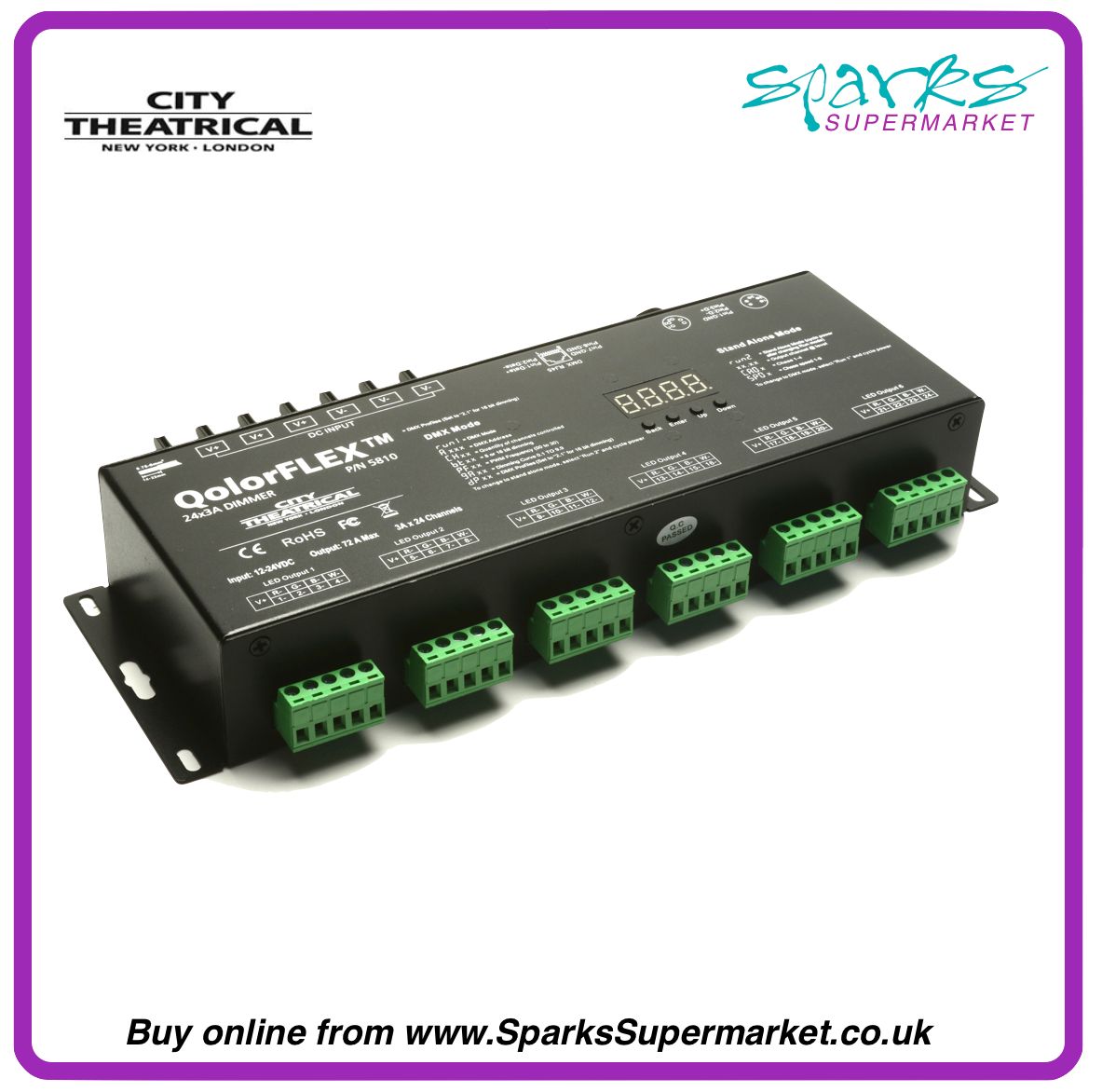

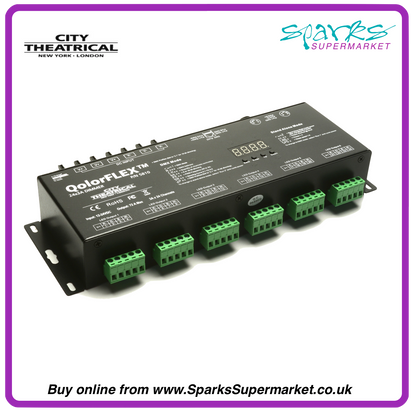

City Theatrical Qolorflex 24x3 LED Driver ( 5810 )

City Theatrical Qolorflex 24x3 LED Driver ( 5810 )

CT-5810

£220.75
£220.75
Offer
Shipping and taxes calculated at checkout.

Please enquire for availability.

QolorFLEX® 24x3A Dimmers are low voltage, constant voltage, dimmers ideal for applications such as retail displays, signage, and general architectural work.

They feature 24 channels of control and are ideal for 1, 2, 3 or 4 color LED tape installations.

This dimmer is fully DMX and RDM compatible and offers stand alone functions. The maximum current load per channel is 3A with maximum device output of 72A.

Requires an external power supply to suit the LED tape you are using.

For indoor use

Specifications QolorFLEX® 24x3A Dimmer
Catalog Number 5810
Outpur Channels 24
Input Voltage 12-24VDC
Max Output per Channel                                                                3A
Max Dimmer Output 72A
Size L x W x H

 10.24 x 4.72 x 1.57 in
(260 x 120 x 40 mm)
Weight 24 oz (.07 kg)
Power Connections Screw Terminals
Output Connections  Screw Terminals
DMX Connections  5 Pin XLR, Screw Terminals and RJ45
DMX Address DIP Switches
Operating Temperature  -29º to 65º C
Compliance  CE, RoHS
