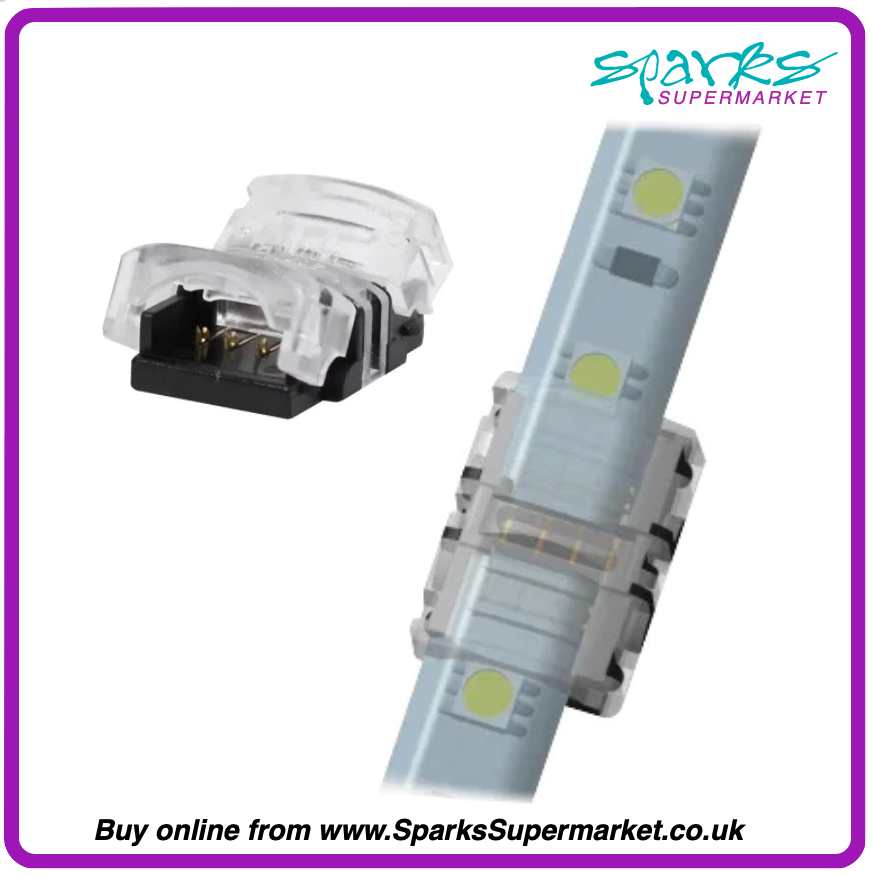

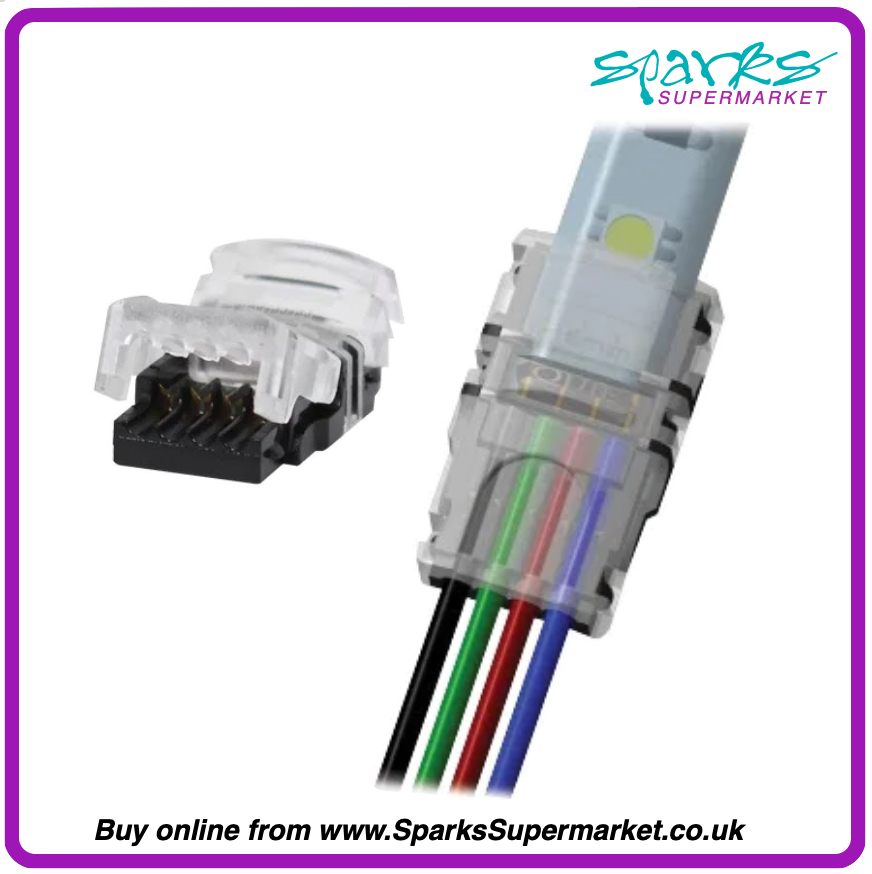

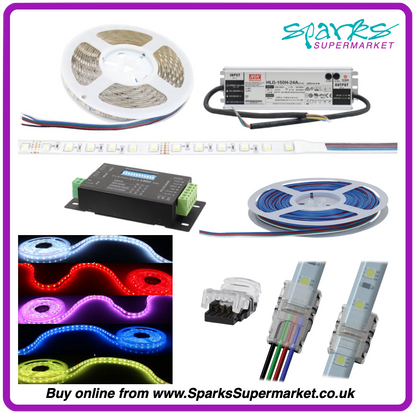

1 x 10 pack clip connectors - LED Tape to LED Tape
Details

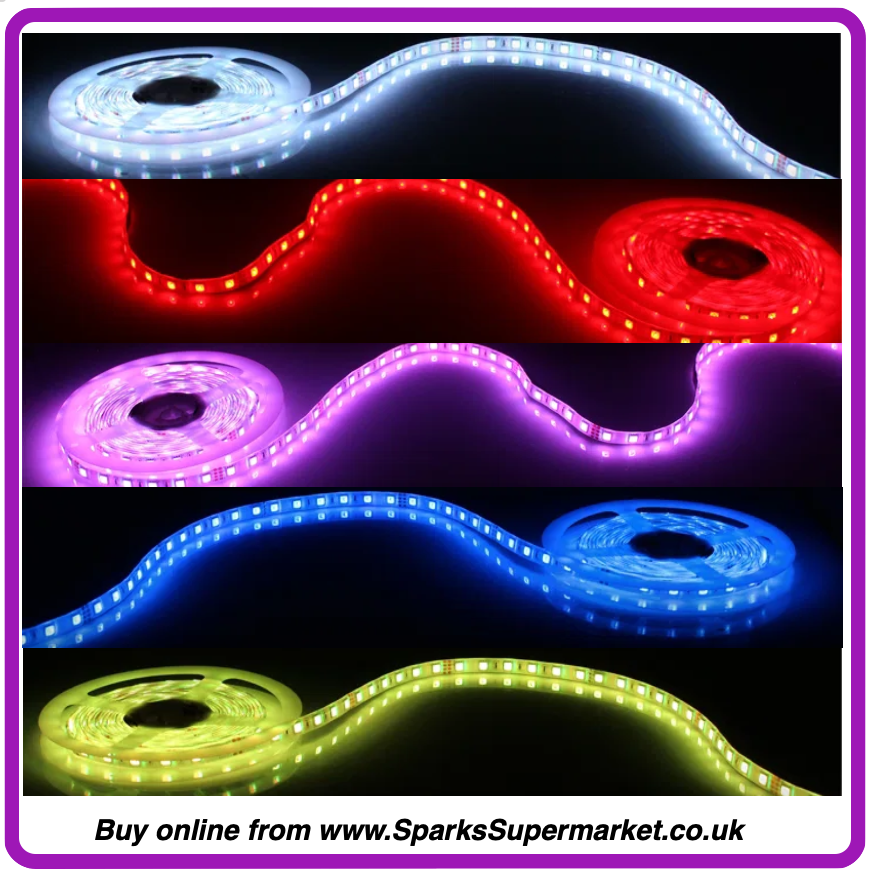

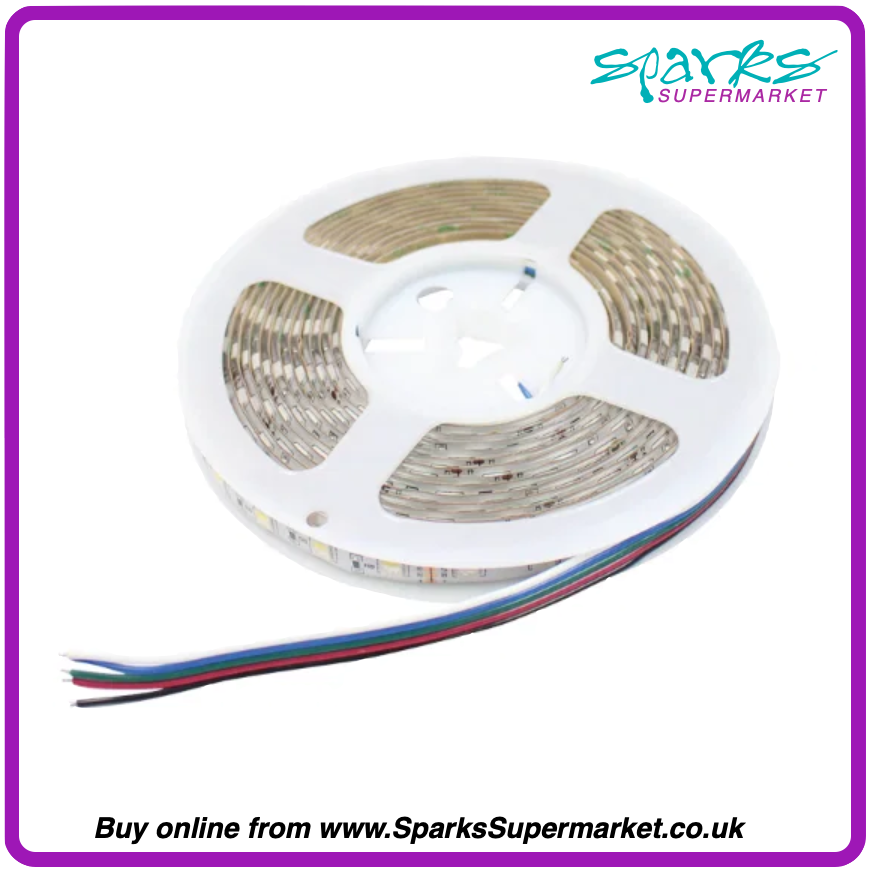

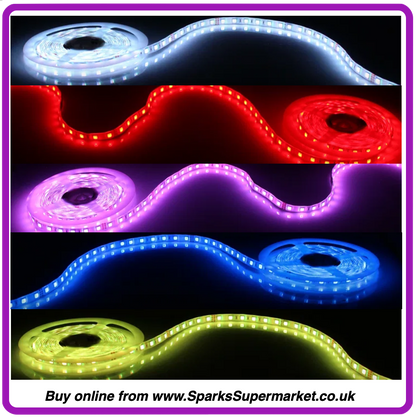

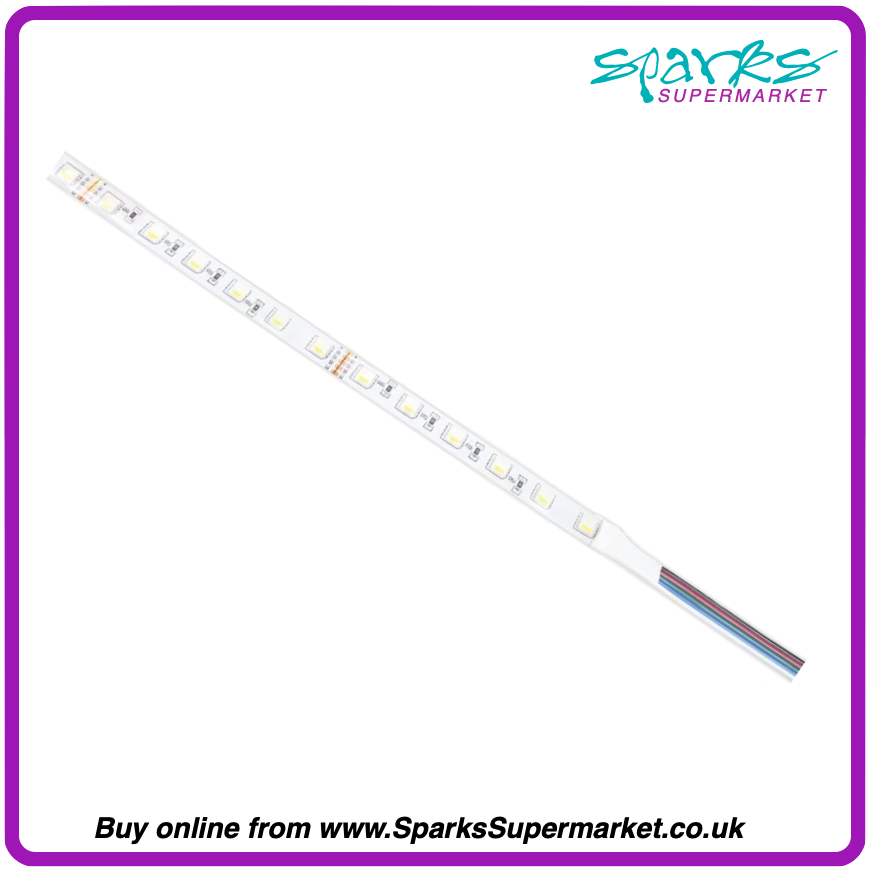

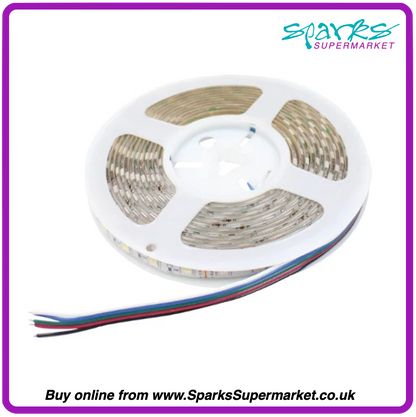

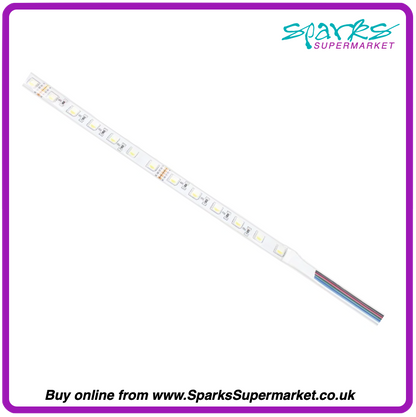

The QUAD-RGB60 Flexible Quad-colour Strip from Visio features 300 vibrant SMD Quad-colour LEDs per 5m roll. The IP-54 rated protective resin coating gives a bright constant smooth effect and can be fitted where a continuous linear halo of light is required.

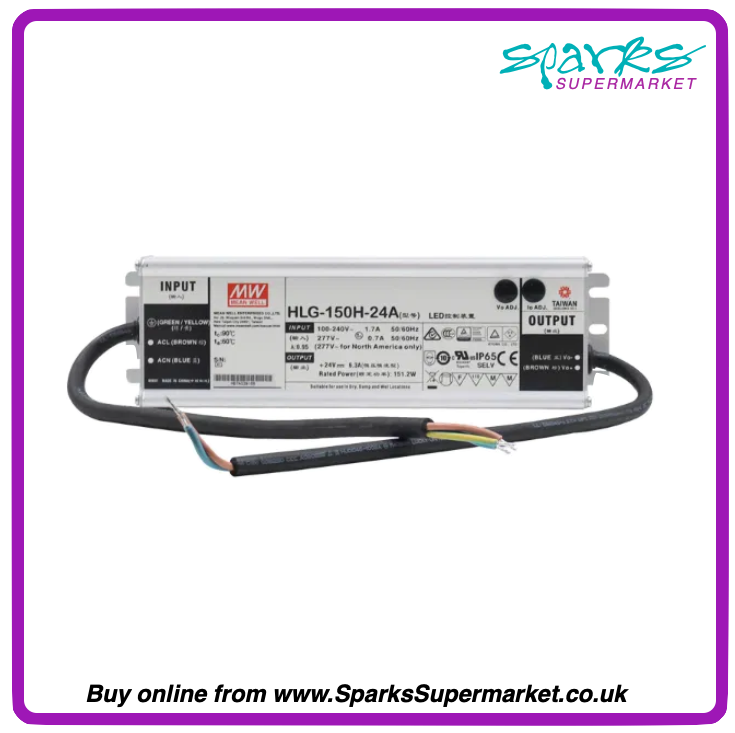

24Vdc, 150W power supply for the Visio LEDJ flexible LED tape. Designed for use with drivers such as the FTP and SDV series.
Features
Universal AC input / Full range (up to 305Vac)
Robust metal chassis
Protection: Short circuit, Over load, Over voltage, Over temperature
Built-in active PFC function
Cooling by free air convection
Suitable for LED lighting and LED display
IP65 rated
Power consumption: 150W
Power supply: 100-240Vac 50~60Hz
Power output: 24Vdc 6.3A
Dimensions (H x W x D): 39 x 228 x 68mm

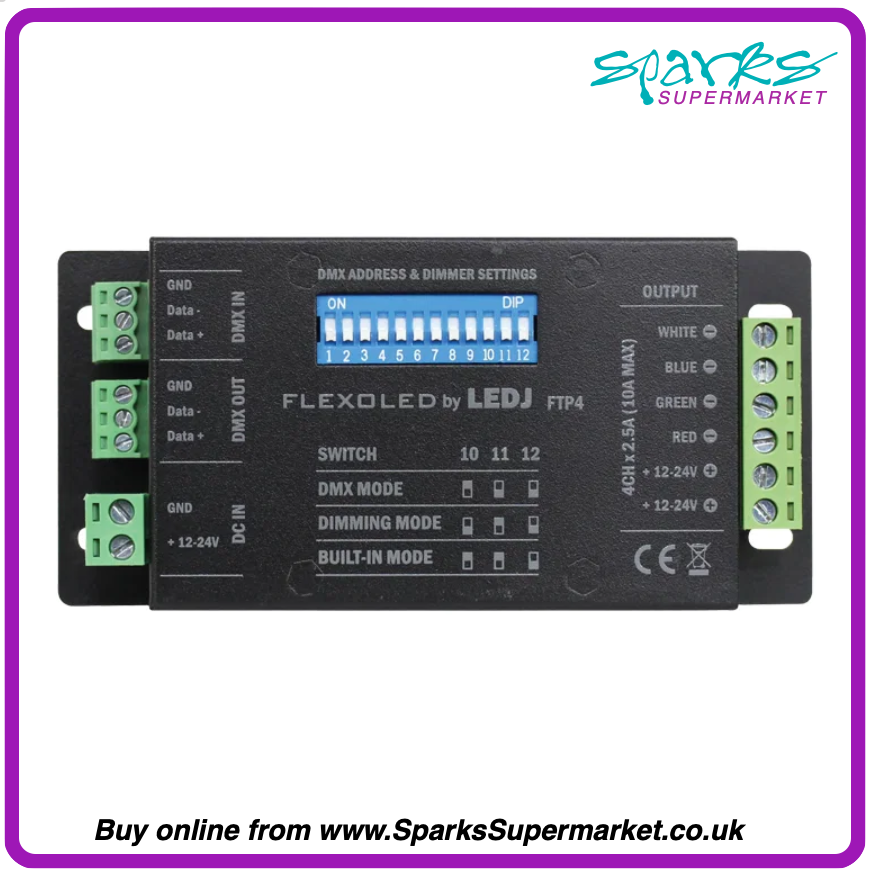

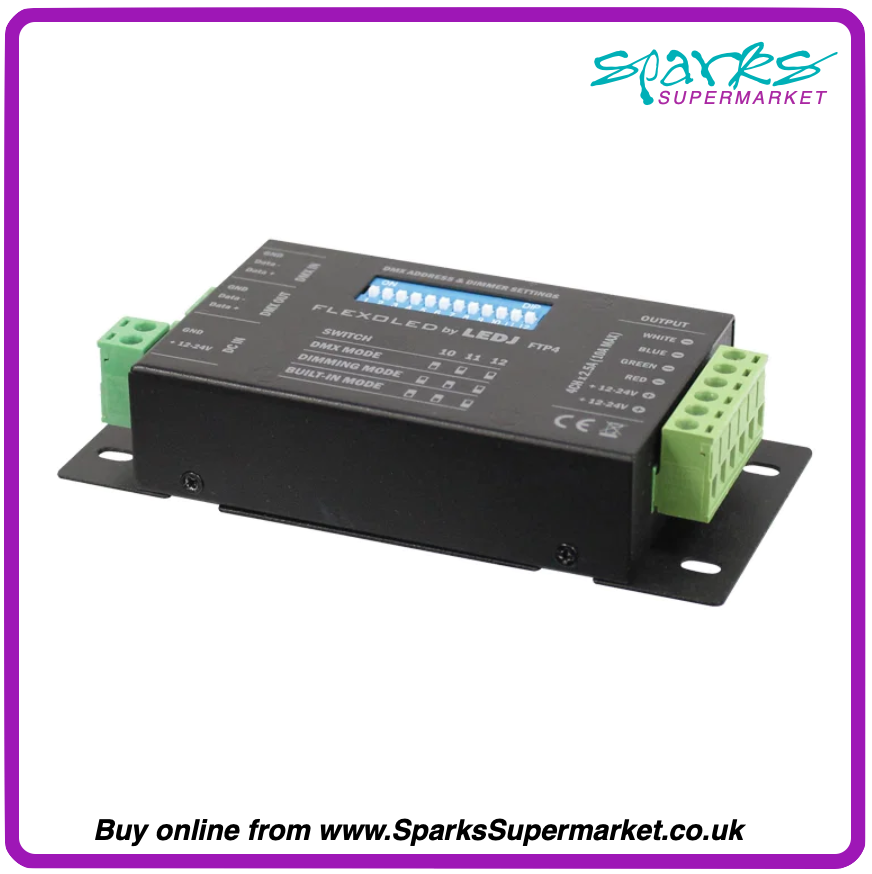

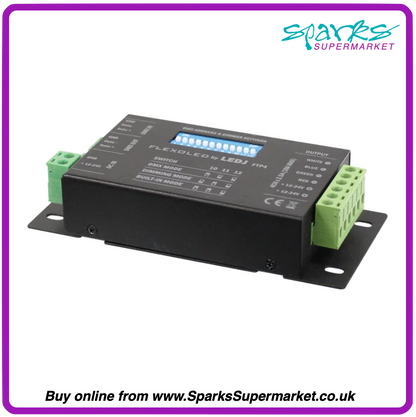

The FTP4 RGBW LED DMX Driver is suitable for most types of 12-24V RGBW flexible colour strips requiring constant voltage control. After connecting a RGBW LED Strip(s) with this RGBW controller you can utilise the manual dimming mode or built-in programs via the on-board dipswitches. Further control can be facilitated by the units DMX input. The driver can also be used for 4 channels of single colour LED tape.
Features
Constant voltage driver for 12-24V RGBW LED flexible colour strip
Refresh rate: 7.8kHz
Housed in a compact, rugged metal casing

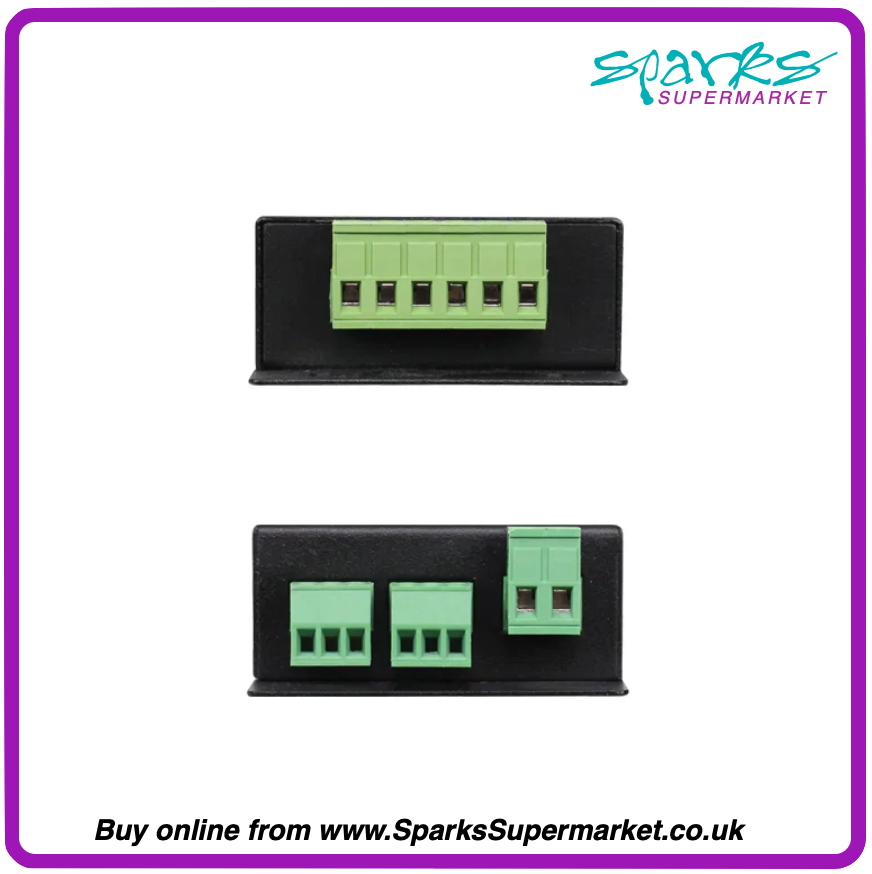

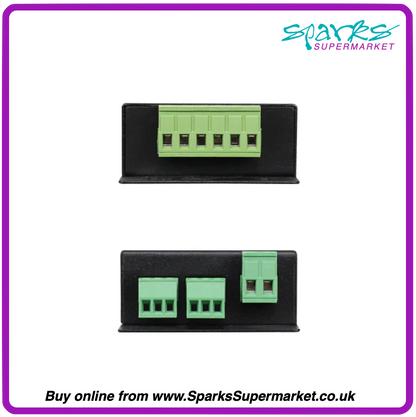

Phoenix type plug in terminals
4 channel operation
DMX and manual dimming mode plus built-in programs
