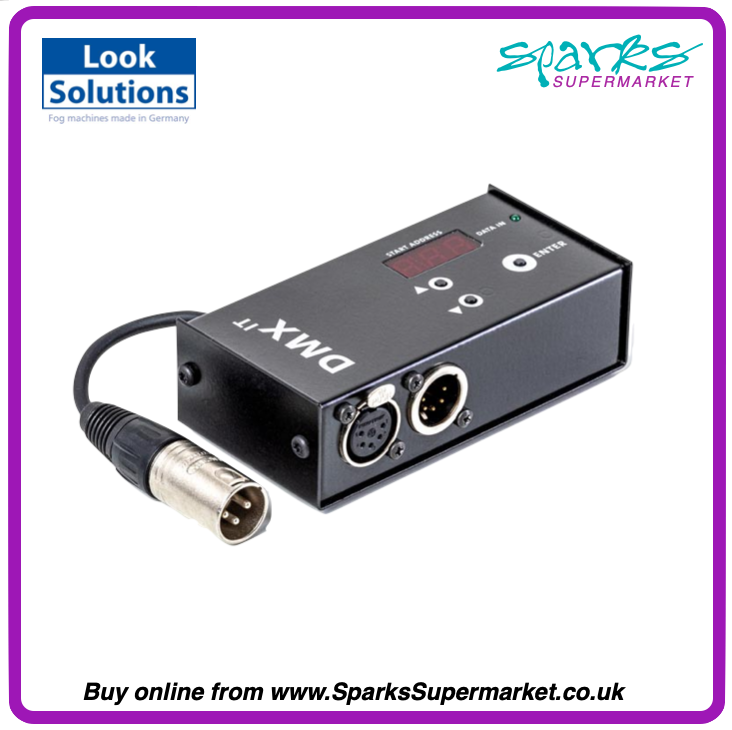

Look Solutions DMX-It XLR - DMX 512 converter with LED-Display

DMXit DMX512 Converter with LED Display

The DMXit is a single channel DMX512 to analogue converter housed in a compact black enclosure. It allows one DMX512 channel to be converted into an analogue 0 to 10 V control signal, making it ideal for controlling compatible non DMX devices such as the Power Tiny Fogger

The DMX start address is set using two simple control keys and is clearly shown on the built in LED display for easy configuration and monitoring.

Please note this unit is not usable with Tiny S Fogger

Key Features

• One channel DMX512 to 0 to 10 V analogue converter
• Clear LED display for start address indication
• Start address adjustment via two keys
• DMX input and output via 5 pin XLR connectors
• Available with 3 pin XLR or 3.5 mm mini stereo jack connection options

Technical Specifications

• Dimensions: 123 x 63 x 31 mm
• Housing colour: Black
