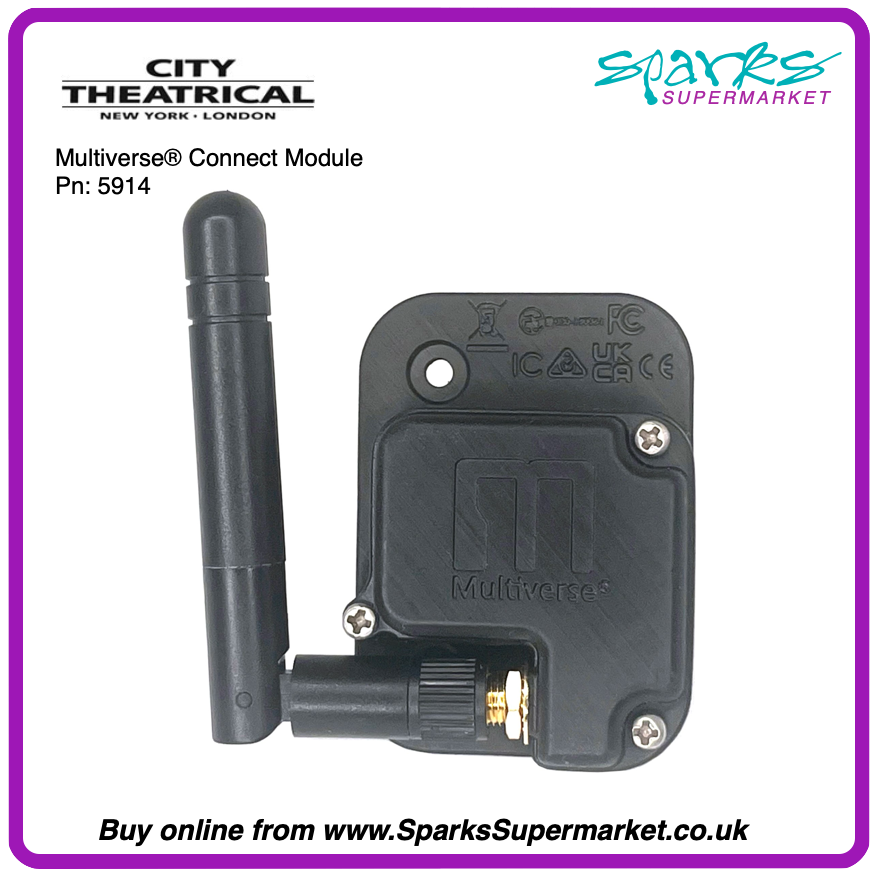

Multiverse® Connect Module

City Theatrical Multiverse® Connect Module 2.4 GHz
Part Number: 5914

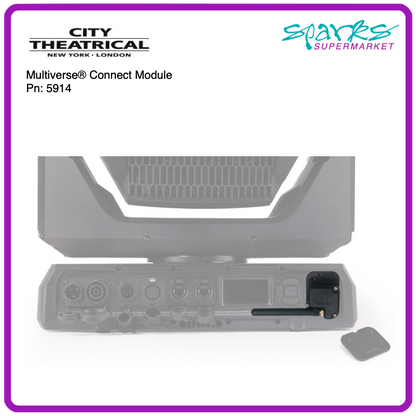

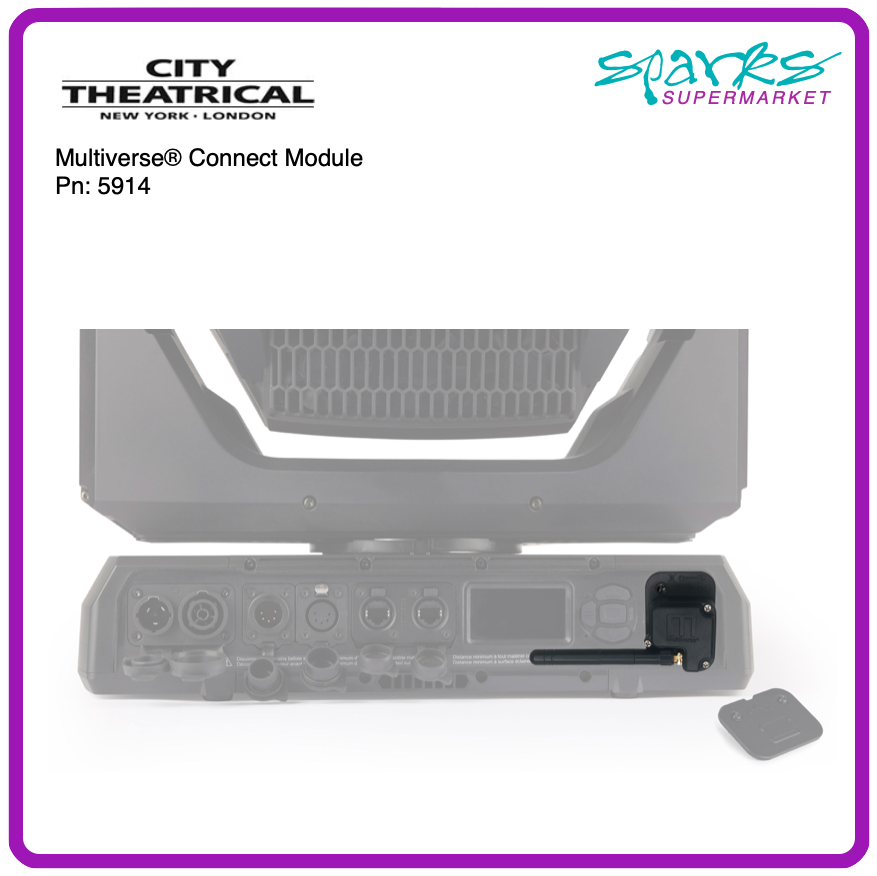

City Theatrical Multiverse Connect Modules are compact wireless DMX and RDM receivers designed to integrate directly into compatible lighting fixtures. When installed in a fixture fitted with a Universal Connect Module socket, the module enables full Multiverse wireless functionality with minimal setup.

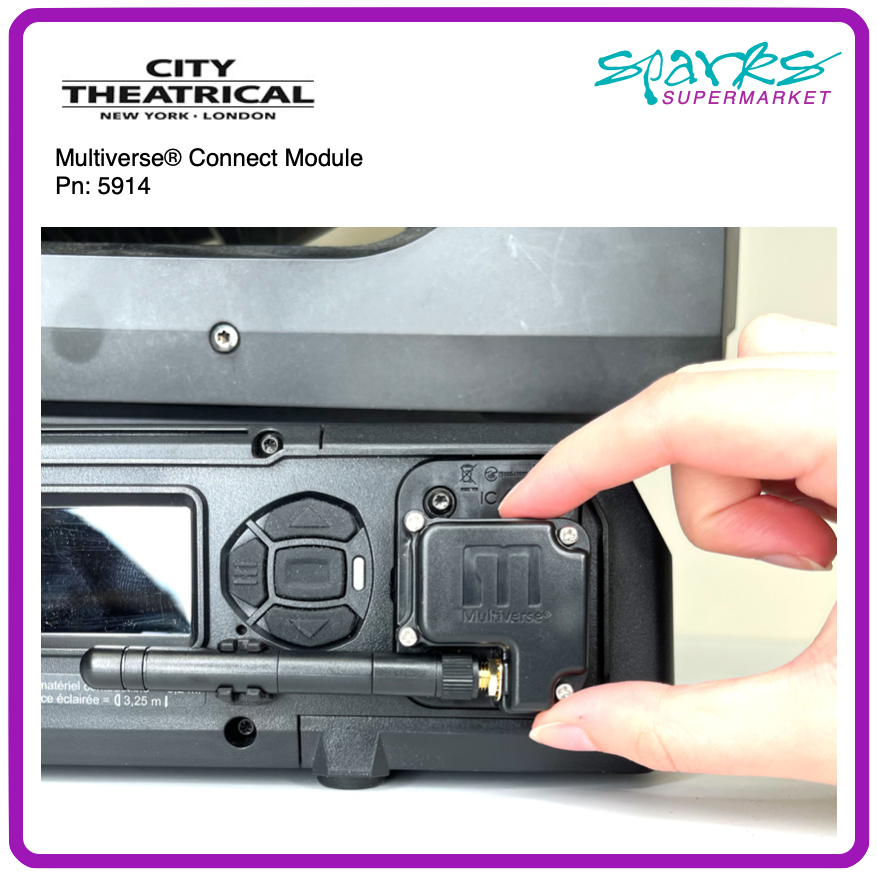

The module plugs directly into the fixture chassis and is configured using the host fixture menu or via RDM. Once enabled, the fixture operates wirelessly using City Theatrical’s Multiverse wireless DMX system.

The 2.4 GHz model is approved for worldwide use and is supplied with a 2 dBi omni directional antenna. This is the same antenna used on City Theatrical’s Multiverse SHoW Baby products, ensuring reliable performance and consistent signal quality.

Multiverse Connect Modules support seamless RDM integration and communicate with the host fixture via USB C using USB 2.0 signalling. The module operates on 5 V DC with a current consumption of 25 mA.

Housed in a durable ABS plastic enclosure, the Multiverse Connect Module is IP64 rated and suitable for both indoor and outdoor applications.

Key features

• Wireless DMX and RDM receiver for Multiverse systems
• Designed for fixtures with Universal Connect Module sockets
• Configuration via fixture user interface or RDM
• 2.4 GHz operation for worldwide use
• Supplied with 2 dBi omni antenna
• USB C power and data connection
• IP64 rated for indoor and outdoor use
