NC4MXX-B

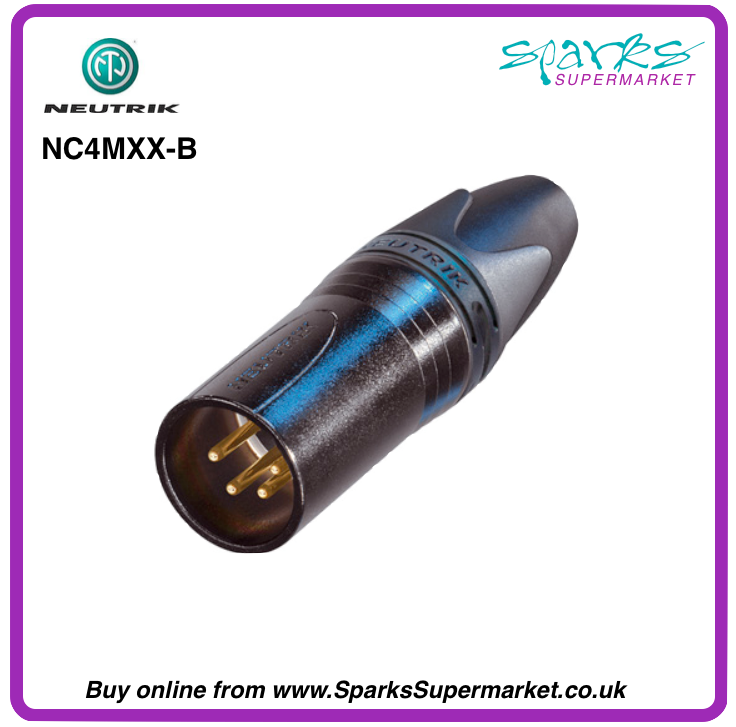

XLR4 4 Pole XLR Cable Connector Male - Black ( NC4MXX-B )

NEUTRIK

  • £5.31


4 pole male cable connector with black metal housing and gold contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title NC4MXX-B
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.5 mm²
Wiresize max. 16 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
