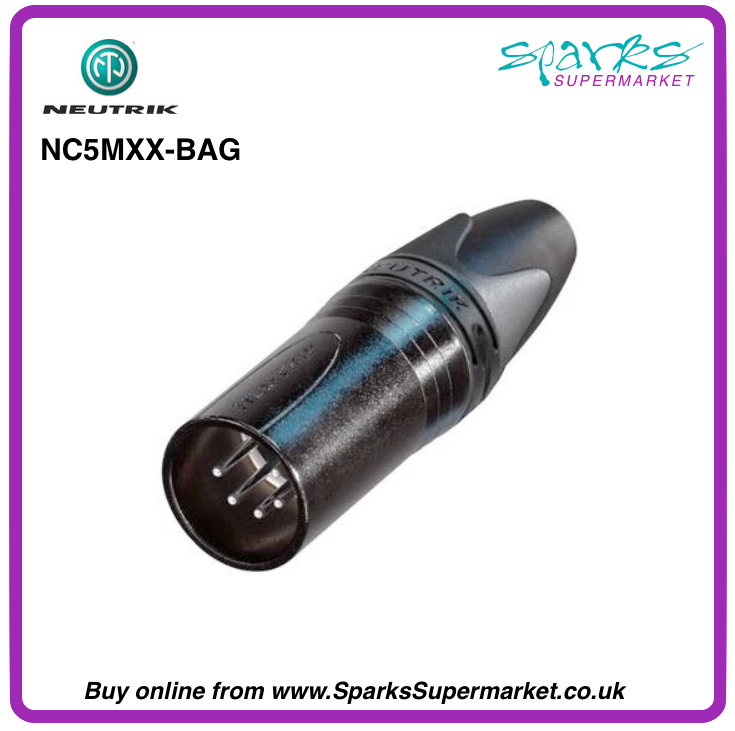

XLR5  5 Pole XLR Cable Connector male - Black ( NC5MXX-BAG )

XLR5 5 Pole XLR Cable Connector male - Black ( NC5MXX-BAG )

NEUTRIK

  • £5.45


5 pole male cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications

  • Title: NC5MXX-BAG
  • Connection Type: XLR
  • Gender: male
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: < 50 V
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
