CHAUVET

Ovation F-415FC

Ovation F-415FC

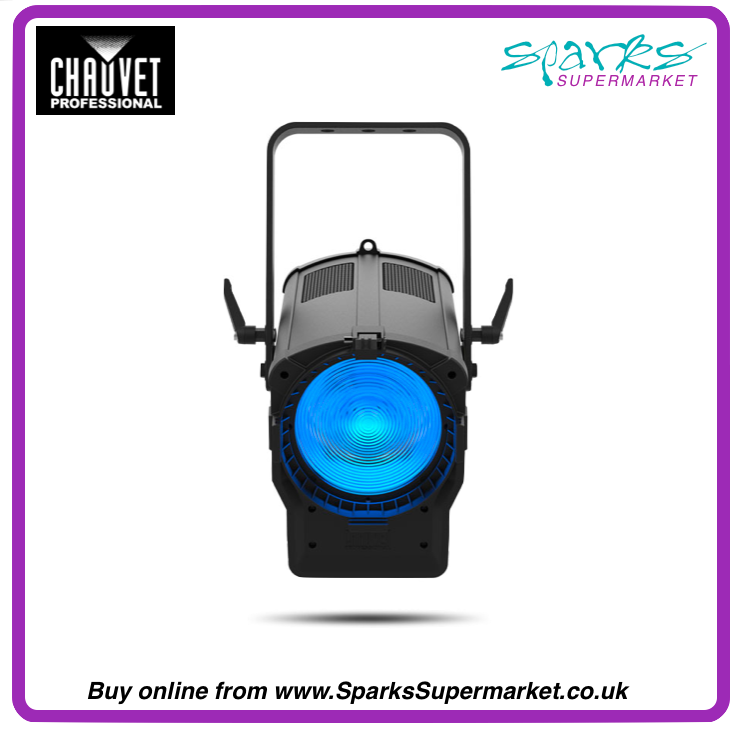

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° – 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

AT A GLANCE

    • Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
    • Soft and even field of light
    • Smooth, motorized zoom from 14° to 68°
    • Beautiful 16-bit dimming of master dimmer and individual colors
    • Easy to use on board control of color, zoom and dimming
    • Virtual Color wheel with color matched to popular gel colors
    • Color Temperature Presets from 2800 K to 6500 K
    • RDM (Remote Device Management) for added flexibility
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
    • Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 6500 K
  • CRI (3200 K): 91
  • Beam Angle: 14° to 43°
  • Field Angle: 27° to 68°
  • Zoom Range: 14° to 68°
  • Lumens (27°): 1,877
    (68°): 2,815
  • Illuminance (27°): 915 lux @ 5 m
    (68°): 190 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz



DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes



CONSTRUCTION / PHYSICAL

  • Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
  • Weight: 12 lb (5.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)



CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)



DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes


CONSTRUCTION / PHYSICAL

  • Dimensions: 22.41 x 12.59 x 10.82 in (569.44x 320 x 275 mm)
  • Weight: 19 lb (8.6kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast


CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15
  • Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)


ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
  • Power and Current: 130 W, 1.101 A @ 120 V, 60 Hz
  • Power and Current: 127 W, 0.638 A @ 208 V, 60 Hz
  • Power and Current: 127 W, 0.585 A @ 230 V, 50 Hz


CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


WHAT'S INCLUDED

  • Ovation F-415FC
  • Neutrik® powerCON® power cord
  • Gel frame (6.25 in / 158.75 mm accessories)


OPTIONAL ACCESSORIES



ORDERING INFO

  • Item Code: 03031482
