Ovation F-915FC
Available on request, please request a quotation pricing and availability

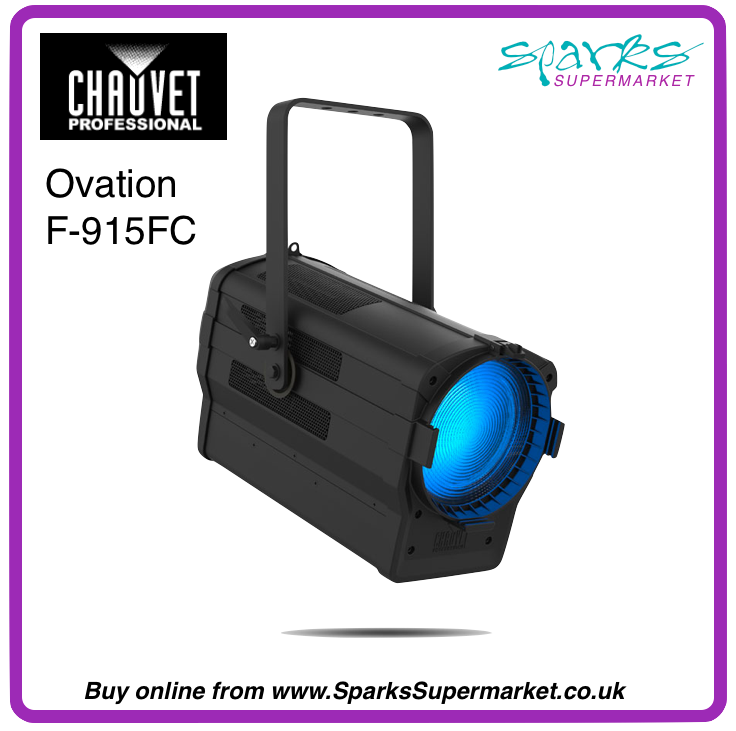

Ovation F-915FC is a high-power, full colour mixing Fresnel style fixture that utilises our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorised zoom with a 17° – 85° field range allows you to add light where it is needed. Control of the virtual colour wheel, zoom and output can be via DMX or on-board dials.
AT A GLANCE
Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 17° to 85°
Beautiful 16-bit dimming of master dimmer and individual colors
Easy to use on board control of color, zoom and dimming
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
SPECIFICATIONS
OPTICAL
Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 90
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Range: 17° to 85°
Lumens (30°): 4,294
Lumens (73°): 6,661
Illuminance (30°): 1,980 lux @ 5 m
Illuminance (85°): 433 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 22.41 x 12.59 x 10.82 in (569.44x 320 x 275 mm)
Weight: 19 lb (8.6kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
WHAT'S INCLUDED
Ovation F-915FC
Neutrik® powerCON® power cord
Gel frame (7.5 in/191 mm accessories)
