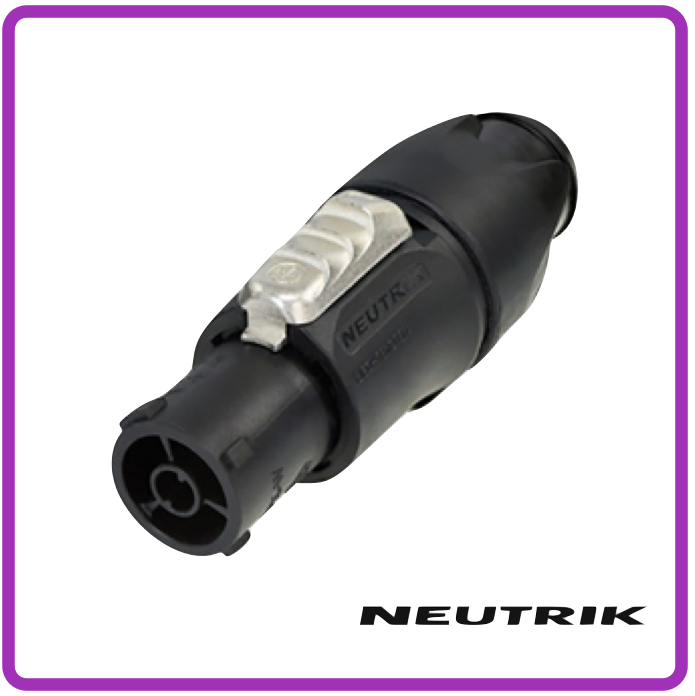

NAC3FX-W-TOP

powerCON True 1 NAC3FX-W-TOP Female IP65

NEUTRIK

  • £6.89


The Neutrik NAC3FX-W-TOP is a powerCON TRUE1 16 A true mains connector for outdoor applications with an IP65 protection class so you don't have to worry about water damage or dirt/dust causing faults in your network. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Specifications

Neutrik NAC3FX-W-TOP Specifications

  • Contact resistance: ≤ 3 mΩ

  • Dielectric strength: 4 kVdc / 2.8 kVac

  • Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)

  • Number of electrical contacts: 2 + PE

  • Rated current per contact: 16 A rms (USA: 20 A)

  • Rated voltage: 250 V ac

  • Contact plating: 2 µm Ag

  • Contacts: Bronze (CuSn0.2)

  • Insert: Polyamide (PA 6.6 30 % GR)

  • Locking element: ZuAl4Cu1

  • Shell: Polyamide (PA 6.6 30 % GR)

  • Strain relief: Polyacetal (POM)

  • Cable O.D.: 6 - 12 mm

  • Lifetime: > 5000 mating cycles

  • Wiresize: 1.0 - 2.5 mm²

  • Wiresize: 12 AWG
