Concentric Ring for ETC S4 Par / Parnel (2484) 191mm

CITY THEATRICAL

  • £37.12


Concentric Rings

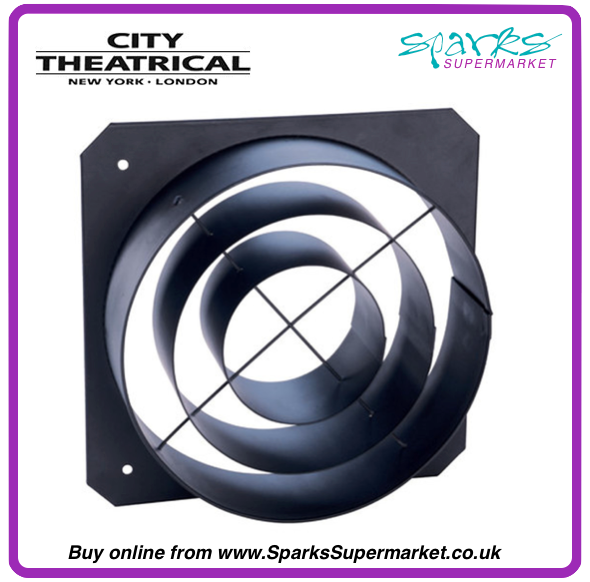

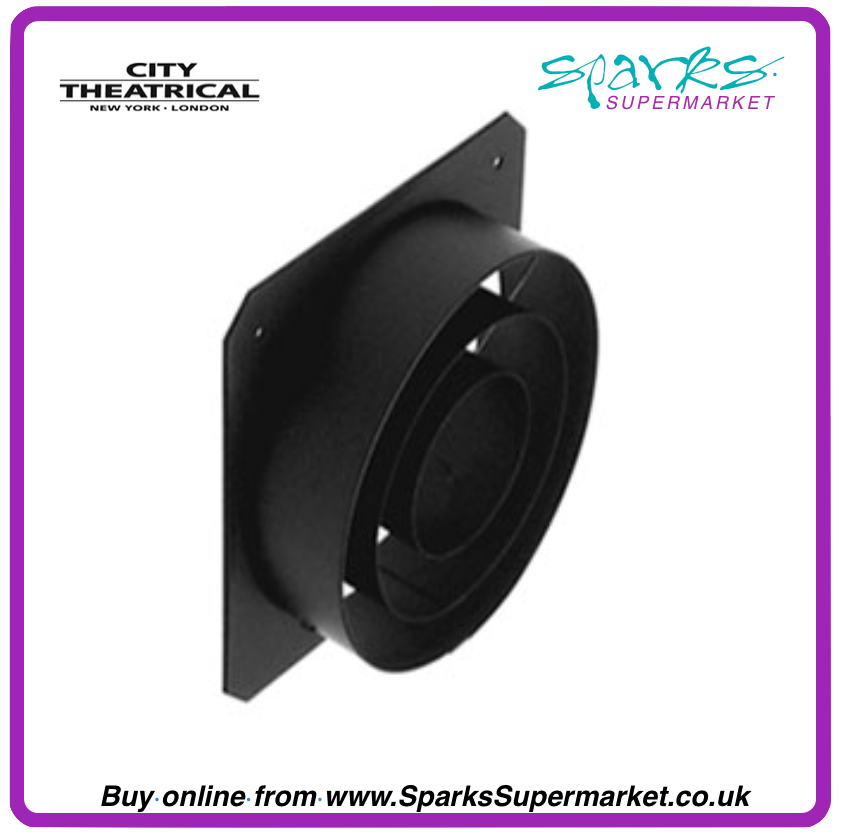

S4 Par / Parnel Concentric Ring (2484) 191mm

When space is at a premium, such as on moving lights hung in a tight rig, Concentric Rings are often the designer's first choice for beam control. Concentric Rings deliver 45° cutoff for full control of stray beams and spill, like a full Top Hat, but they do it in a shorter device.

Concentric Rings also provide a "Svoboda-like" style when used on lighting fixtures that are in view of the audience, and present a deeply theatrical feel.



S4 PAR

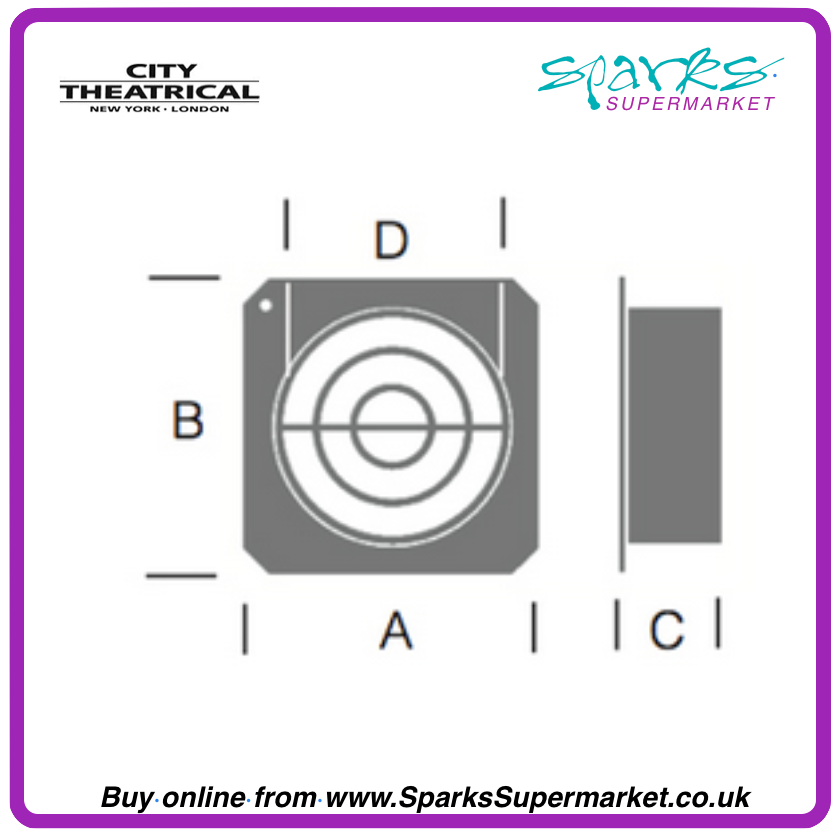

Concentric Ring

A

7 1/2”
(191mm)

B

7 1/2”
(191mm)

C

2”
(51mm)

D

6 3/4”
(171mm)

Order code

2484



Features

  • Offers full control of stray beams and spill
  • Fabricated from light gauge steel with hemmed edges
  • Comparable function to a full 6 inch (152mm) Top Hat
  • Only 2 inches (51mm) long
  • Black powdercoat finish
