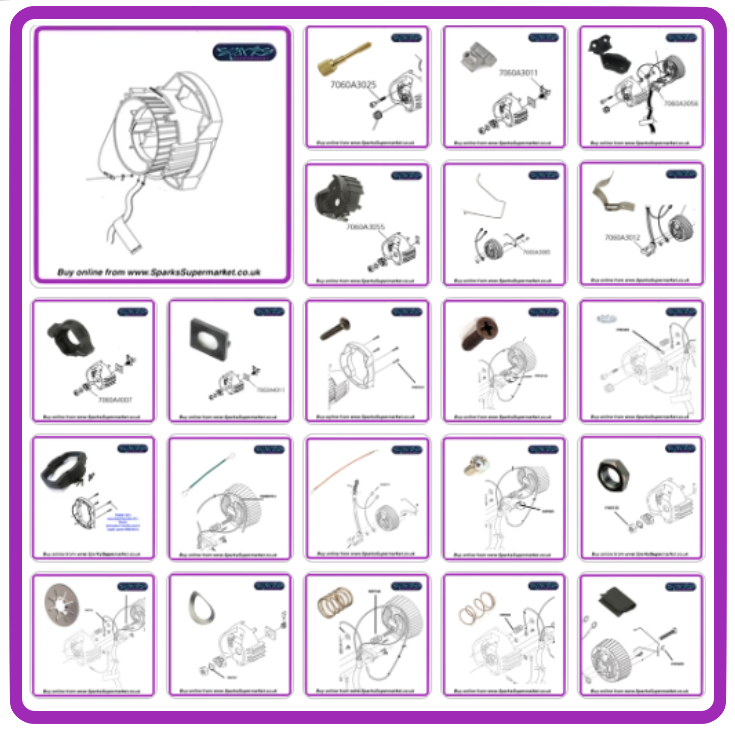

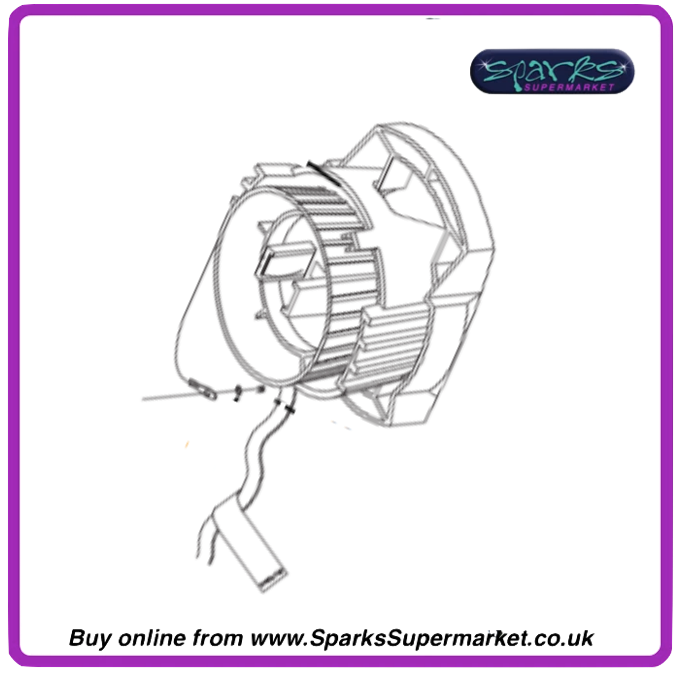

SOURCE FOUR LAMP BURNER ASSEMBLY - SPARE PARTS

Electronic Theatre Controls

  • £91.00

Will not despatch until

All the spare parts for ETC Lamp burner including the cable assembly and retro fit kit for pre-1997 lanterns.

Select the part required from the drop-down menu



      7060A1033    Lamp retainer retrofit kit for pre 1997 lanterns that don't have them as standard.

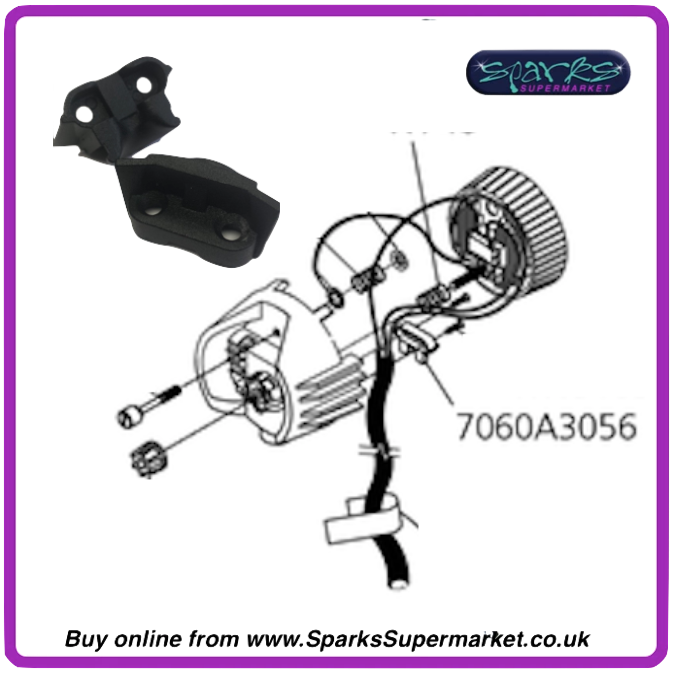

          7060A3056    Source Four CE Strain Relief Clamp, Black

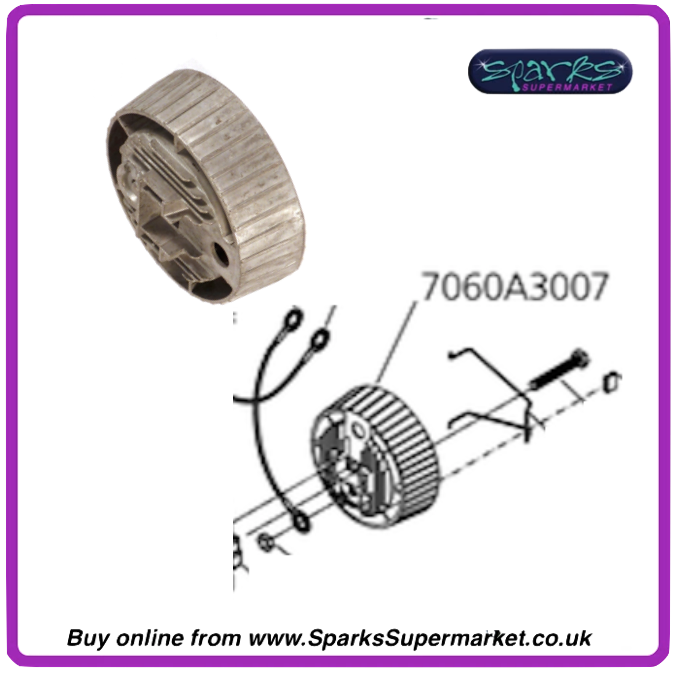

            7060A3007    Socket, light baffle casting

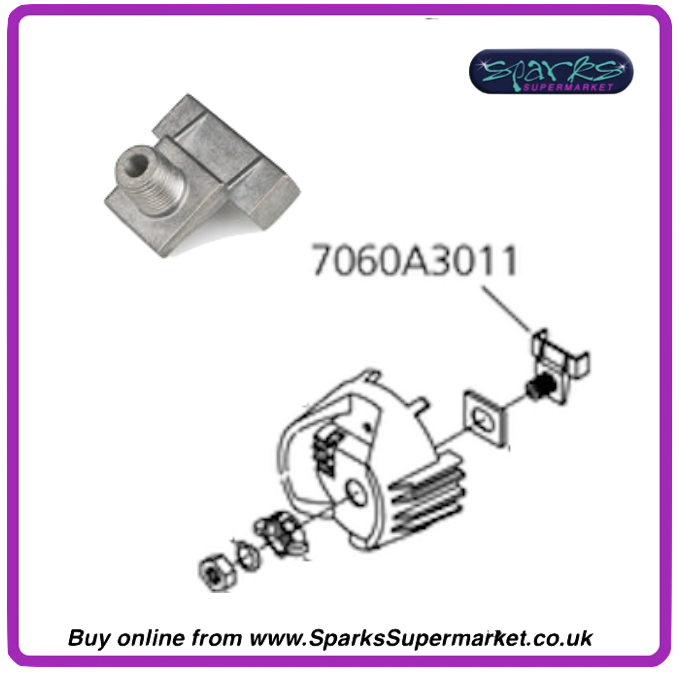

              7060A3011    Hub, index casting

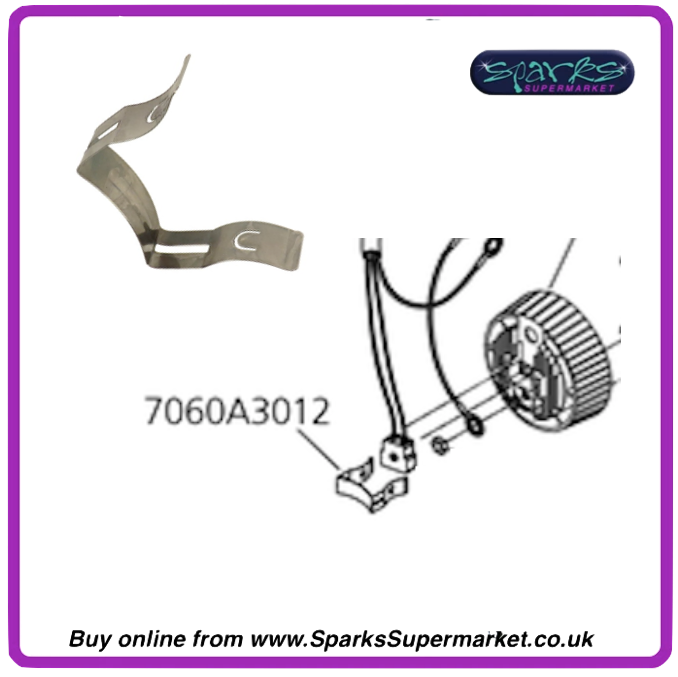

                7060A3012-0    Spring, lamp retainer

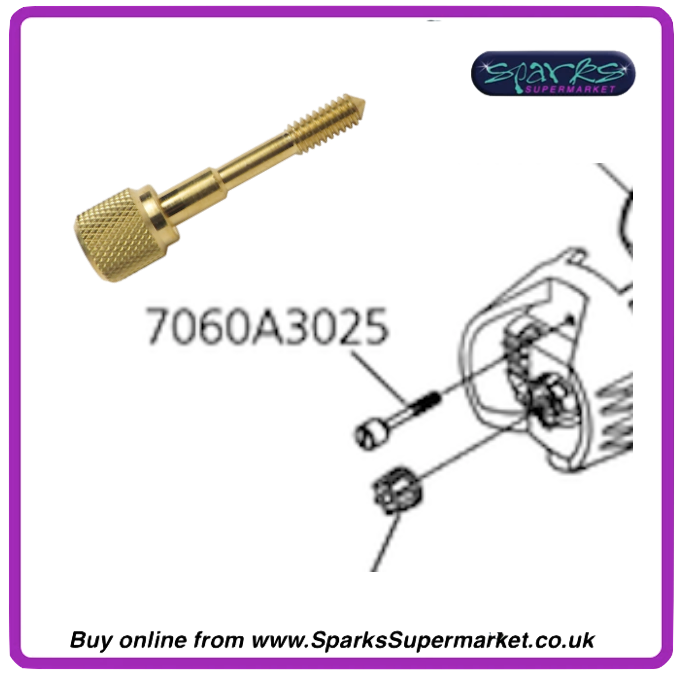

                  7060A3025    Screw, 1/4-20x1.55 knurled head

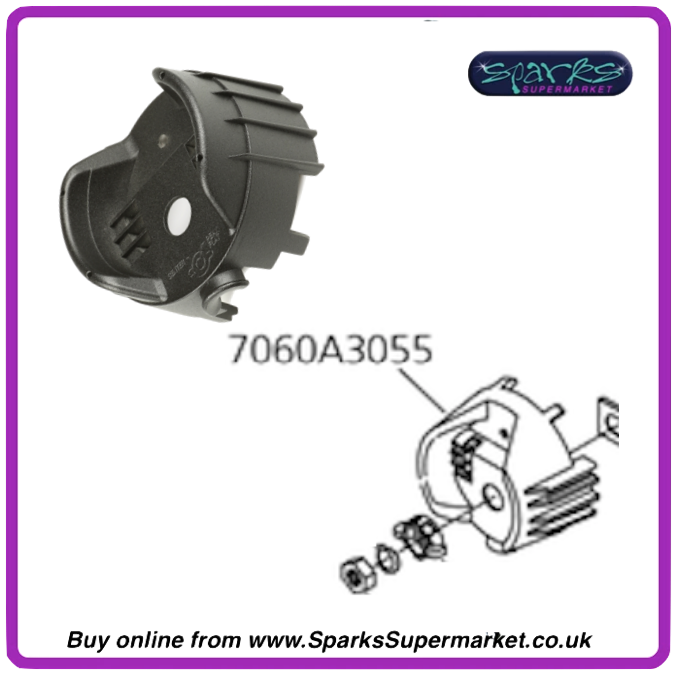

                    7060A3055    Housing, socket, casting, Black

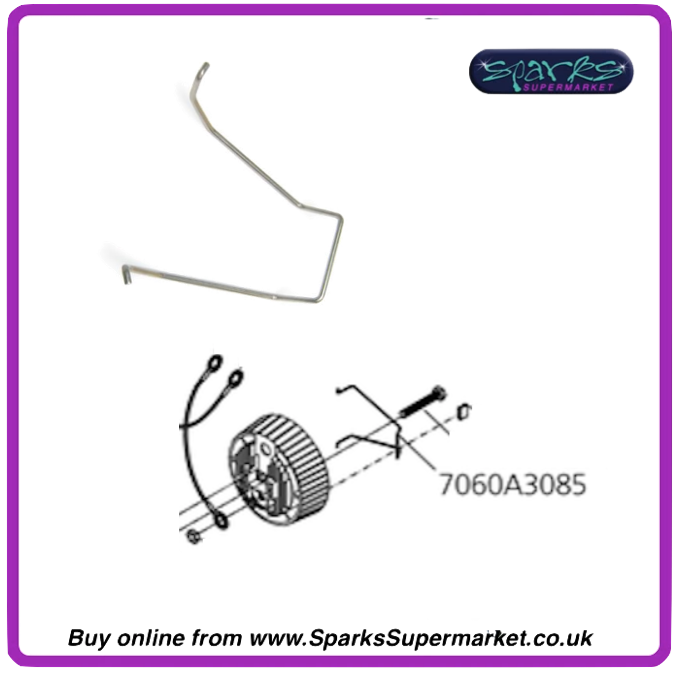

                      7060A3085    Lamp retainer wire

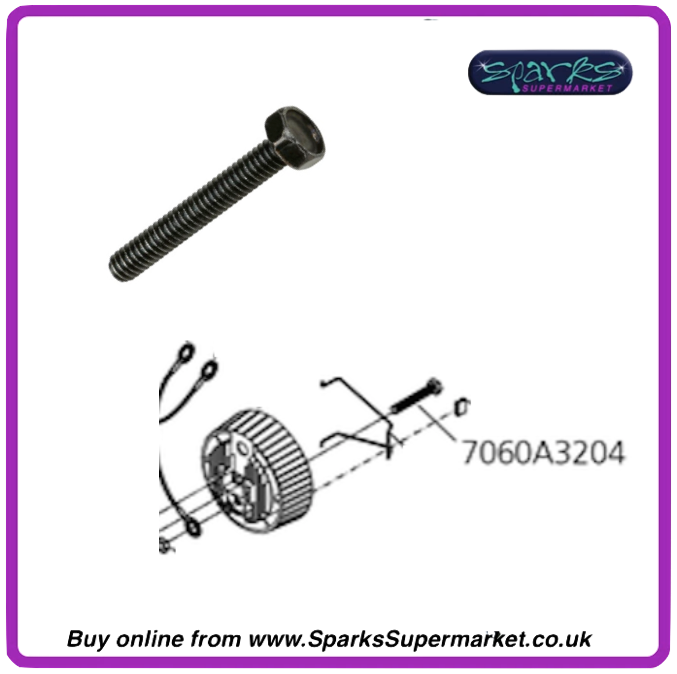

                        HW5122    7060A3204    Bolt, 1/4-20 x 1/75, full thread

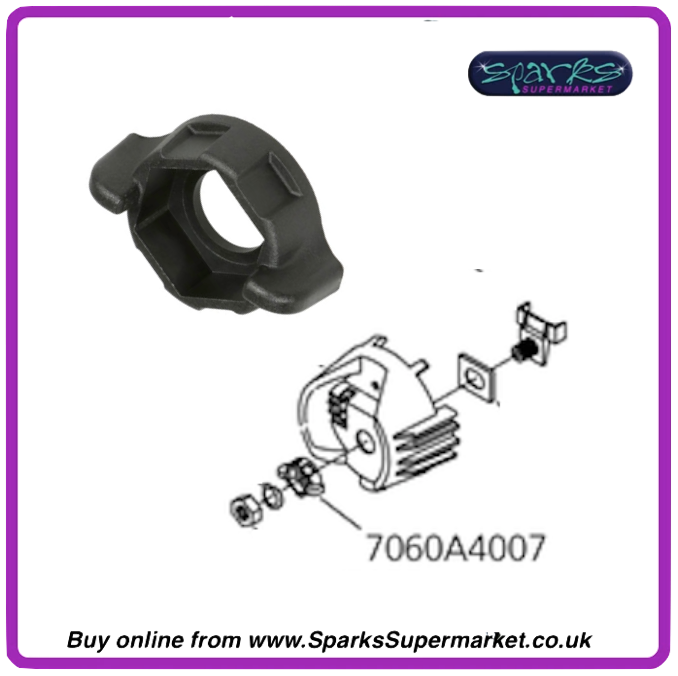

                          7060A4007    Knob, X-Y, lamp set

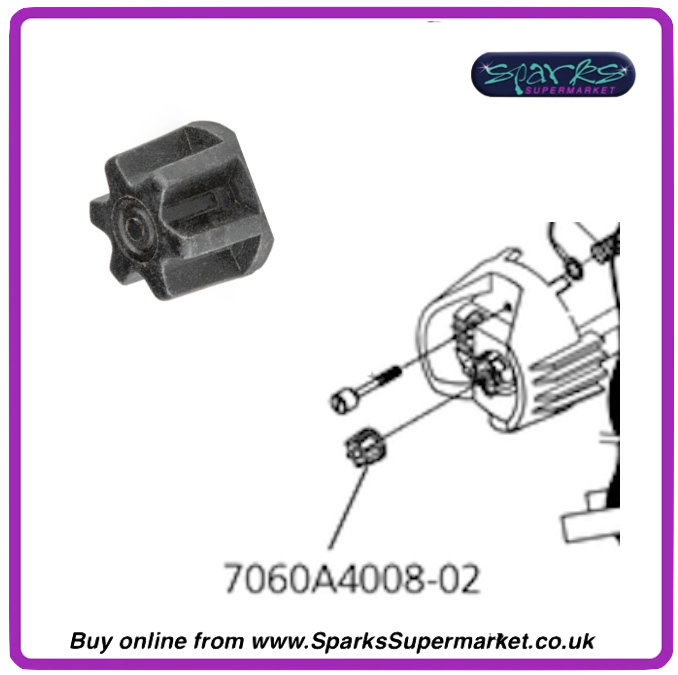

                            7060A4008-02    Knob, Z, lamp set w/ female insert
                              7060A4019    Label, Fixture Warning

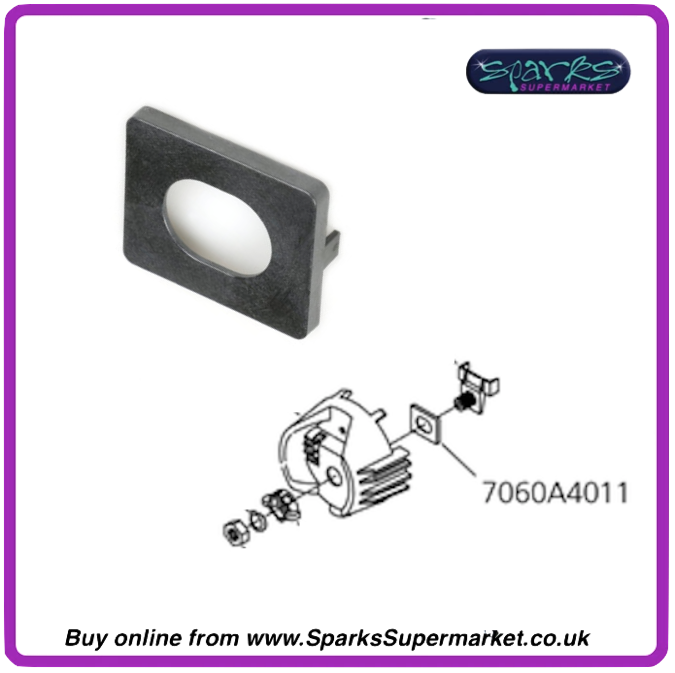

                                7060A4011    Bushing cup
                                  7060K1001    Insulated Handle Kit, Black (includes handle and 4 x screw HW2181)
                                    7060B7013    Source Four/Source Four jr CE Cable Assembly / cable wiring set 1.5m

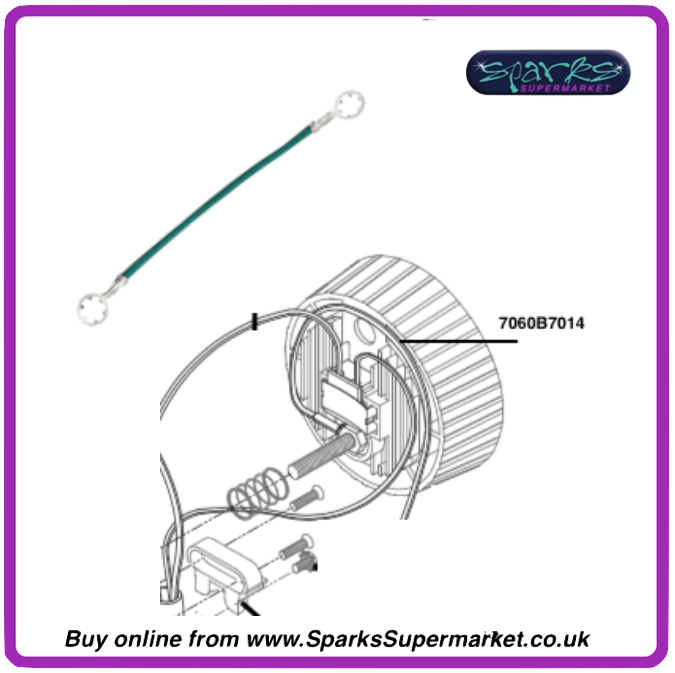

                                        7060B7014    Source Four CE Ground Wire

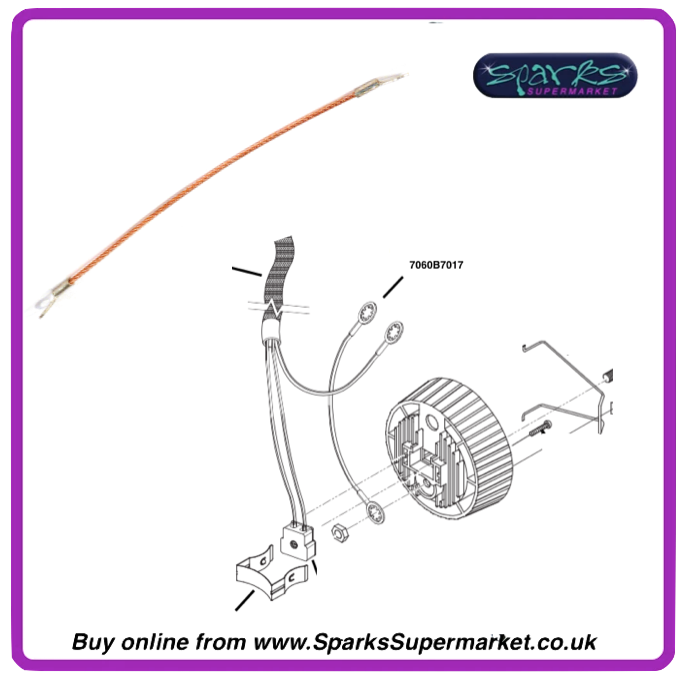

                                          7060B7017    Safety wire assembly, bronze

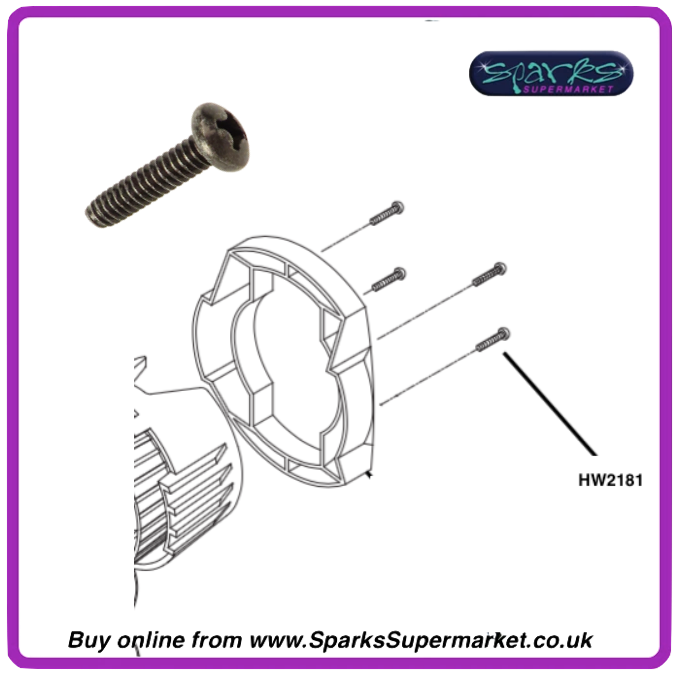

                                            HW2181    Screw, self tap,6-32 x 5/8, black zinc

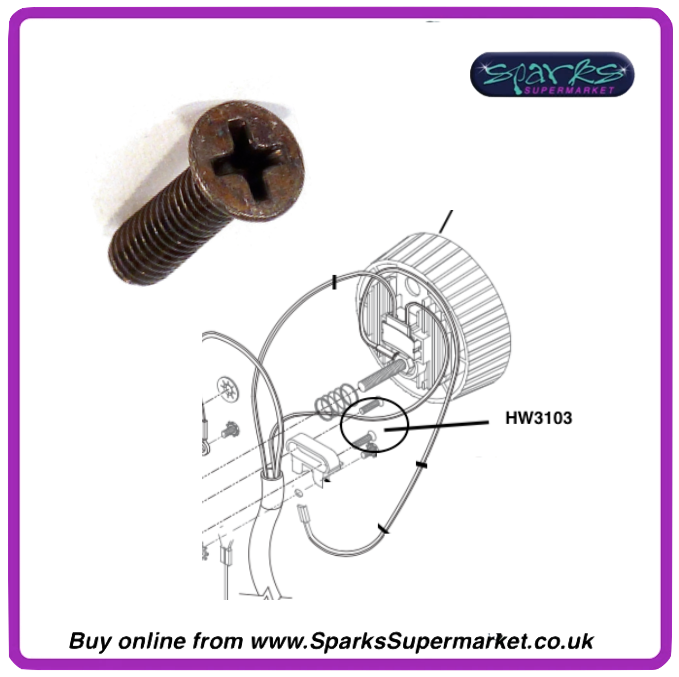

                                              HW3103    Screw, 8-32 x 5/8 PhFHMS, black zinc

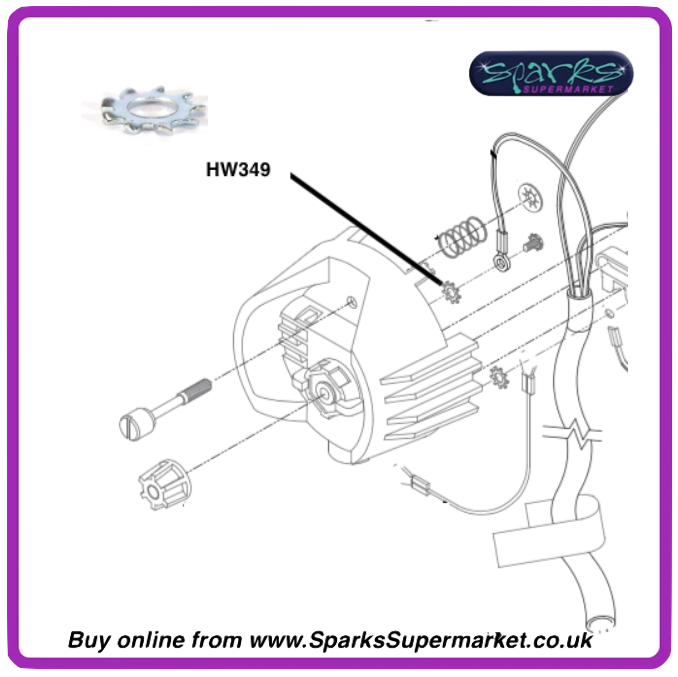

                                                HW349    Washer, ext #8 .170x.381x.023 zc

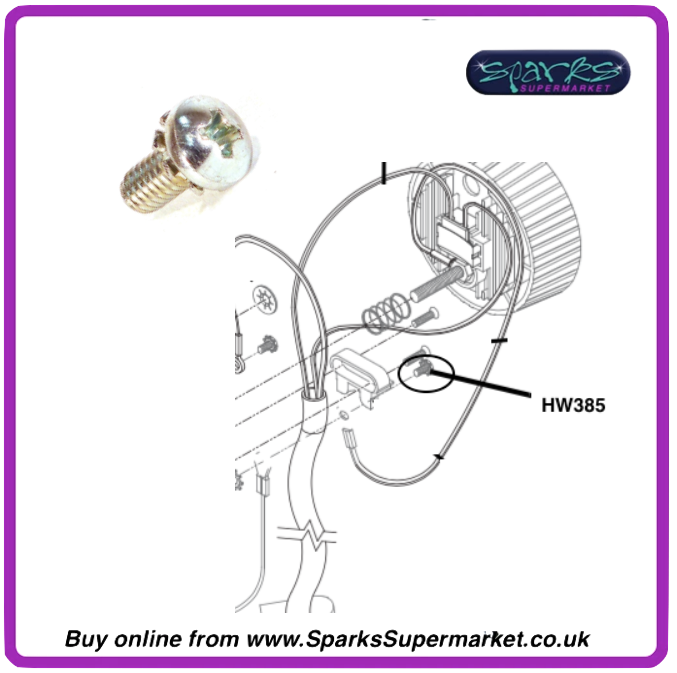

                                                  HW385    Screw 8-32 x 3/8” PhPHMS SEMS

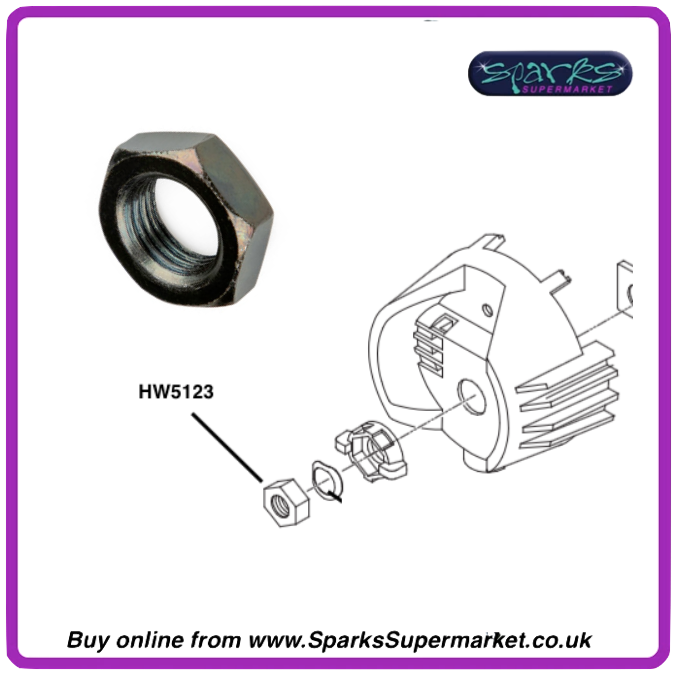

                                                    HW5123    Nut, hex, 9/16-18, black zinc

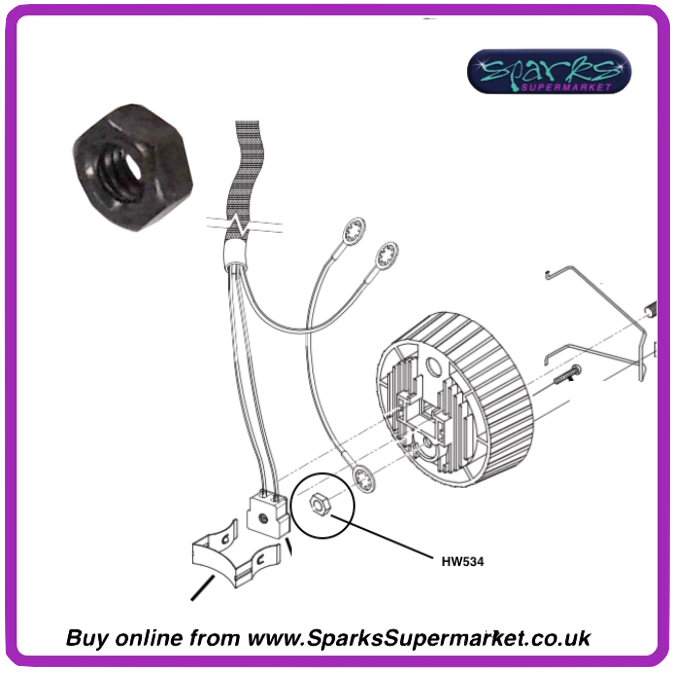

                                                      HW534    Nut, Hex, 1/4-20, black zinc

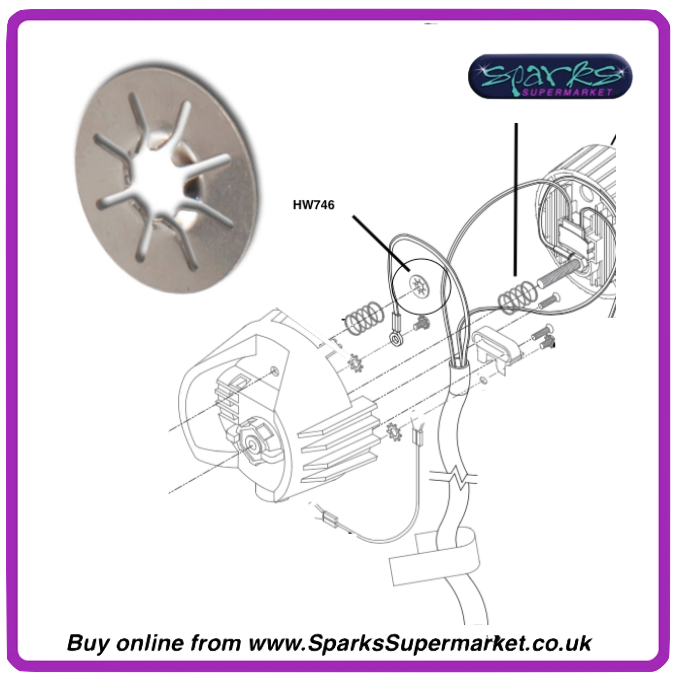

                                                        HW746    Screw Retainer Flat 12-6-1

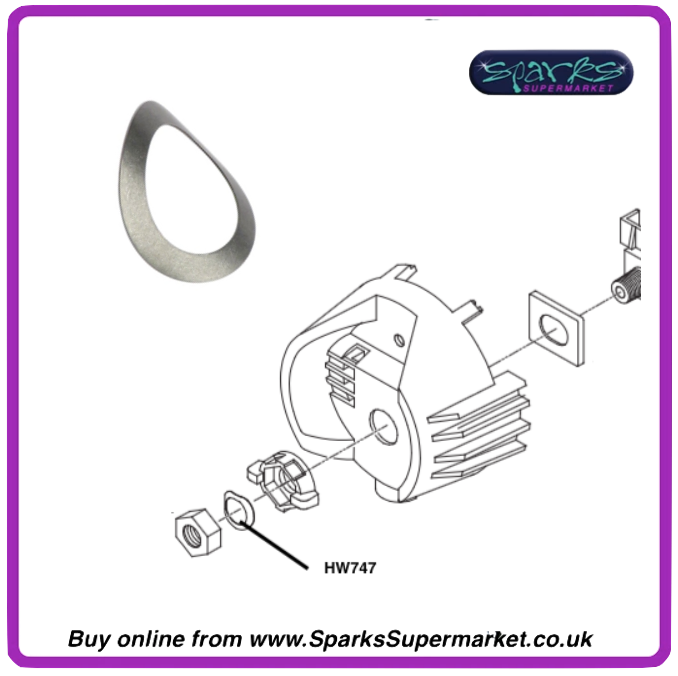

                                                          HW747    Washer, wave

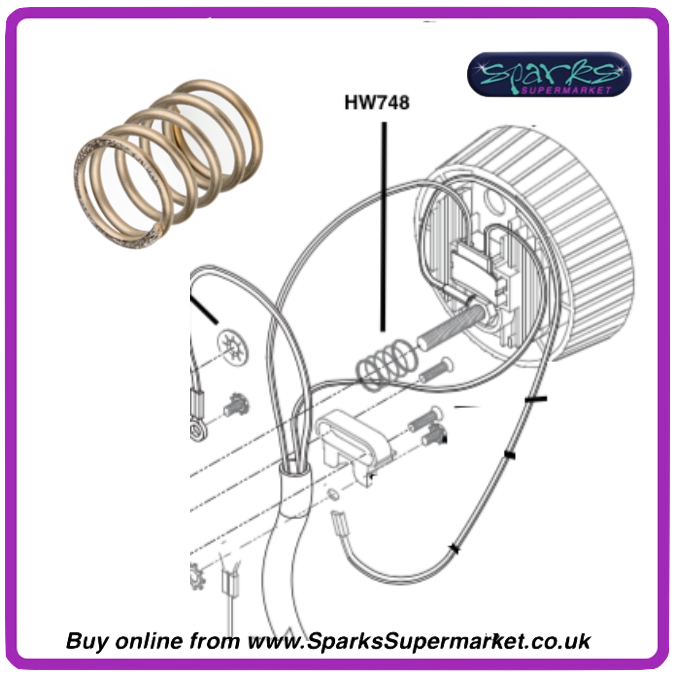

                                                            HW748    Spring, compression CO720-072

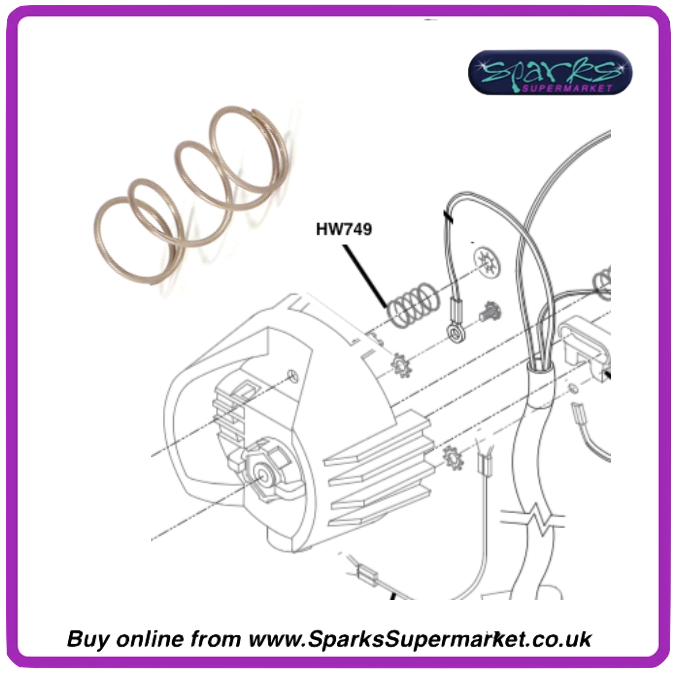

                                                              HW749    Spring Ground

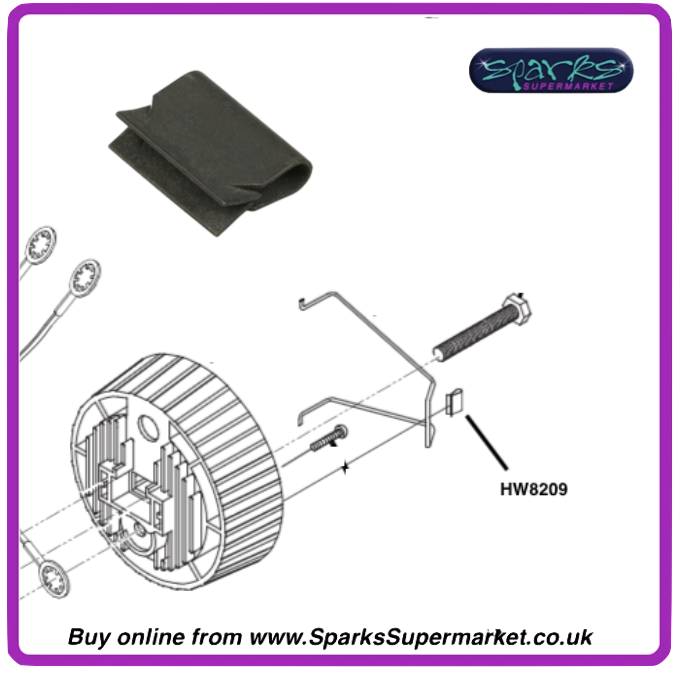

                                                                HW8209    Clip, Tinnerman
