TRANSCENSION

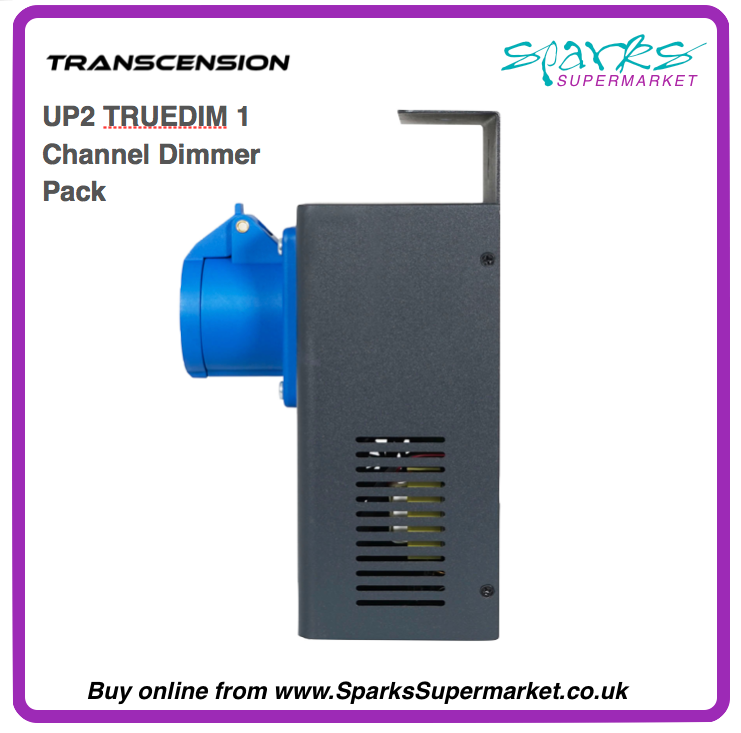

UP2 TRUEDIM 1 Channel Dimmer Pack

UP2 TRUEDIM 1 Channel Dimmer Pack

SKU:

Regular price £114.60
Regular price £124.60 Sale price £114.60
Offer
Shipping calculated at checkout.

Please enquire for availability.

This convection cooled dimmer comes with DMX control and an on-board HTP fader for standalone use.

These dimmers are perfect for using with standalone fixtures in small studios, for follow spots or for incorporating into and expanding DMX systems.

Suitable for use with non-incandescent loads when used as a switch pack.



Features:

- Compact, 1 channel DMX/HTP dimmer pack
- Dim preset - Dim limiter
- HTP function
- Can be configured as a switch pack
- Easy-to-use mounting bracket
- PowerCON TRUE1 input/output
- 5-Pin XLR input/output
- Output connector: Neutrik PowerCON TRUE1-TOP and 16A Ceeform (parallel wired)
- Maximum output: 10A (resistive load)
- Trailing edge dimming technology

Specifications:

- Power supply: 240V, 50Hz
- Fuse: F10A 250V
- UP2 Dimmer dimensions: 210 x 148 x 130mm
- Weight: 1.7kg
