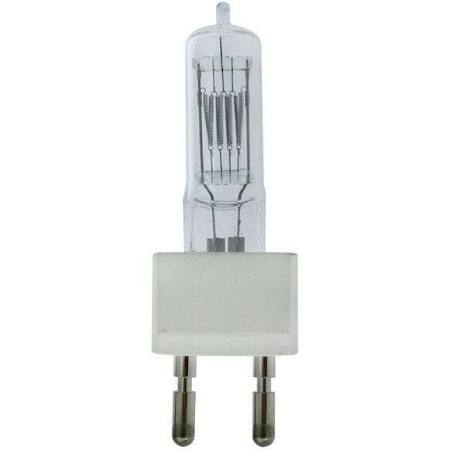

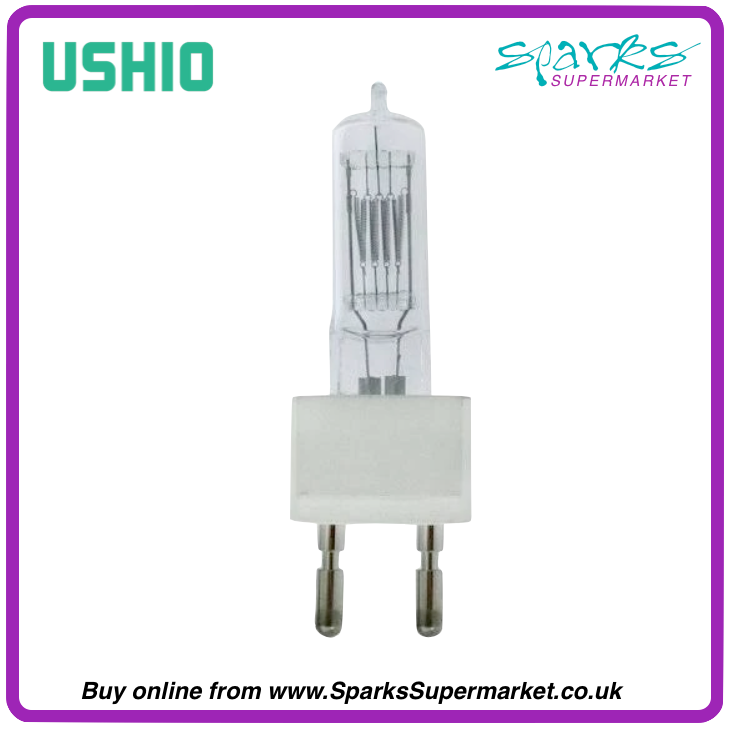

Ushio VL1K 1000W 240V G22 Halogen Lamp for Vari-Lite VL1000 & VL1100

Ushio VL1K 1000W 240V G22 Halogen Lamp for Vari-Lite VL1000 & VL1100

The Ushio VL1K 1000W 240V is a professional tungsten halogen lamp with a G22 base, developed specifically for Vari-Lite VL1000 automated luminaires. Delivering 25,500 lumens with a warm 3200K colour temperature, it provides the high light output, excellent colour rendering and smooth dimming performance demanded by professional stage and entertainment lighting.

Designed to work with the optical system of the Vari-Lite VL1000 series, the VL1K features a precision filament design and tightly controlled manufacturing tolerances to deliver consistent performance throughout its service life. At Sparks, we've also supplied and used these lamps in Vari-Lite VL1100 fixtures, making them a popular replacement for keeping these classic moving lights and other legacy Vari-Lite fixtures in service.

Product Identification

Manufacturer: Ushio
Manufacturer Part Number: 1003273
Lamp Reference: VL1K
Technology: Tungsten Halogen
Lamp Type: Single Ended (SE)
Base: G22

Specifications

Power: 1000W
Voltage: 240V
Base: G22
Light Output: 25,500 lumens
Colour Temperature: 3200K
Luminous Efficacy: 28.5 lm/W
Average Life: 300 hours
Bulb Type: T7 Clear
Filament Type: 8-C-13D
Overall Length: 140mm (max)
Diameter: 22mm (max)
Light Centre Length (LCL): 72.5 ±2mm
Dimmable: Yes

Applications

• Automated theatre lighting
• Professional stage lighting
• Television and broadcast studios
• Live events and touring productions
• Entertainment venues

Compatible Fixtures

The Ushio VL1K is designed for use with:

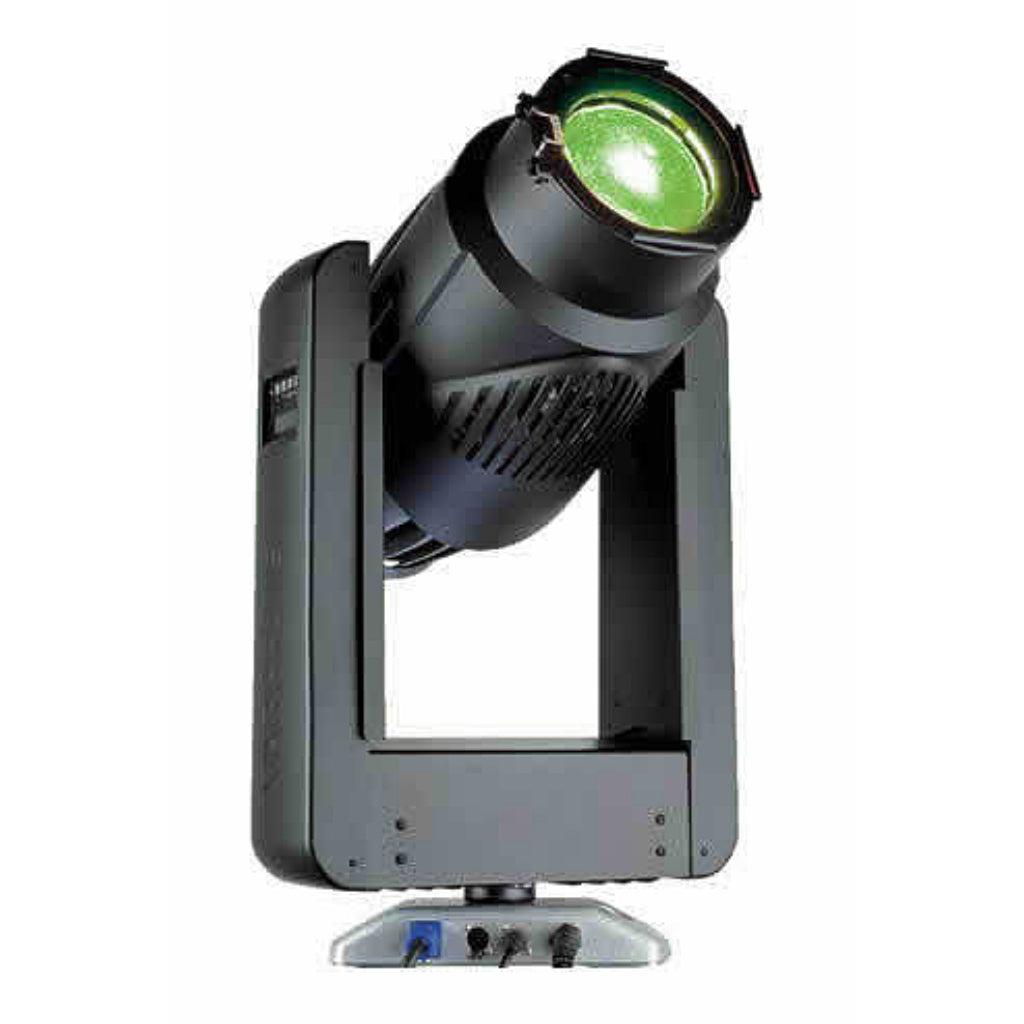

• Vari-Lite VL1000T
• Vari-Lite VL1000TS
• Vari-Lite VL1100 (where specified)

Always check your fixture manufacturer's documentation before ordering to confirm compatibility.

Features

• Developed specifically for Vari-Lite VL1000 fixtures
• High-output tungsten halogen lamp
• Precision filament for optimum optical performance
• Consistent 3200K colour temperature
• Excellent colour rendering
• Smooth theatrical dimming with natural amber shift
• Robust construction for professional entertainment lighting

Alternative References

• VL1K
• Ushio VL1K
• Ushio 1003273
• VL1K 240V
• JS240V-1000WC/V

• Vari-Lite VL1000 lamp

• Vari-Lite VL1100 lamp

Need help choosing the right lamp?

If you're unsure whether this is the correct replacement lamp for your Vari-Lite fixture, we're happy to help. With many years of experience supplying theatres, schools, venues and production companies across the UK, we can help identify the correct replacement lamp for your lighting equipment.
