WELL CONNECT HUB

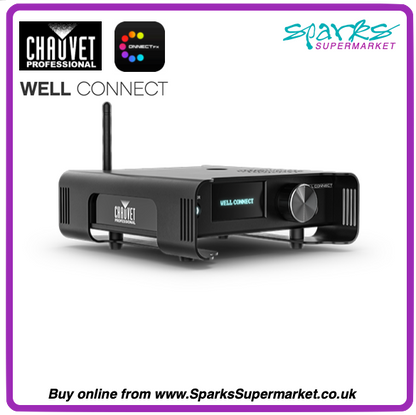

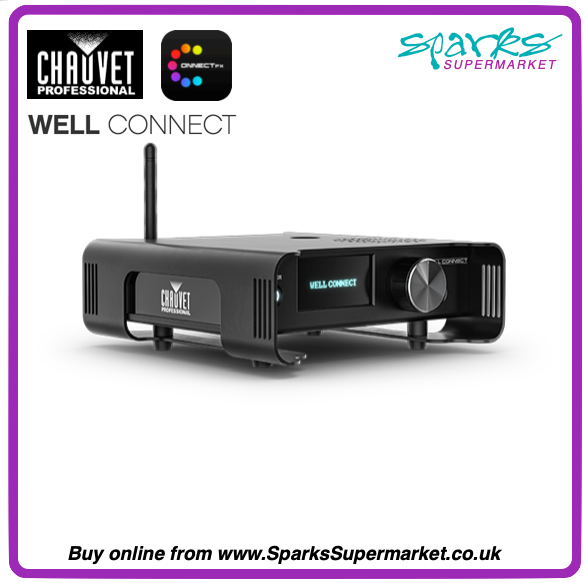

WELL CONNECT Wireless Transceiver

Designed for seamless integration with the ConnectFX app, the compact, battery-powered WELL CONNECT wireless transceiver enables app-driven flexibility and robust data transmission. Whether controlling WELL fixtures or making an entire lighting system wireless, WELL CONNECT delivers unmatched portability, versatility, and ease of use for event professionals and system integrators. With reliable W-DMX/CRMX transmission and direct playback, it’s housed in a rugged, professional-grade package.

---

Key Features

Wireless Control Hub
Compact, battery-powered Bluetooth and W-DMX/CRMX transceiver for controlling WELL fixtures or any DMX lighting system.

App-Driven Operation
Pairs with the ConnectFX app (iOS & Android) for intuitive wireless control of scenes and effects.

Flexible Output Options
Supports both wireless and wired DMX protocols for reliable signal distribution.

12-Hour Battery Life
Integrated lithium-ion battery provides all-day wireless operation; USB-C port enables continuous power when needed.

Onboard Playback

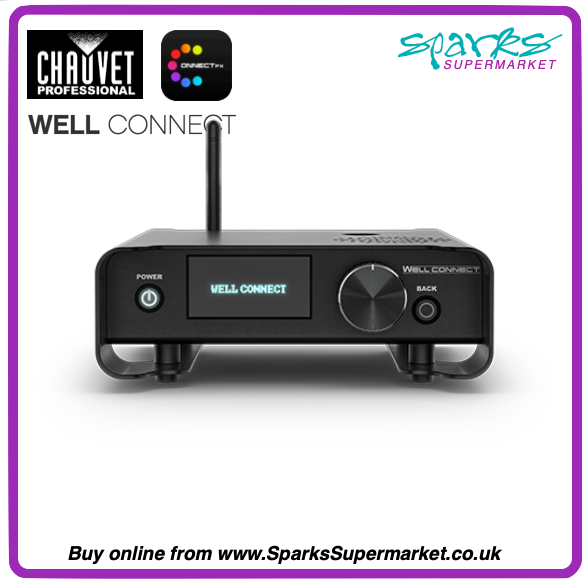

Trigger pre-programmed scenes directly from the unit’s display—no console required.

Rugged & Road-Ready
Durable aluminum housing and M12 threaded bolt ensure quick, secure mounting in demanding environments.

Smart Firmware Management
Web-based UI enables easy firmware updates and configuration.

---

Specifications

Construction / Physical

Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)

Weight: 1.8 lb (0.9 kg)

Exterior Color: Black

Housing Material: Aluminum alloy

Connections

Power Input: USB-C

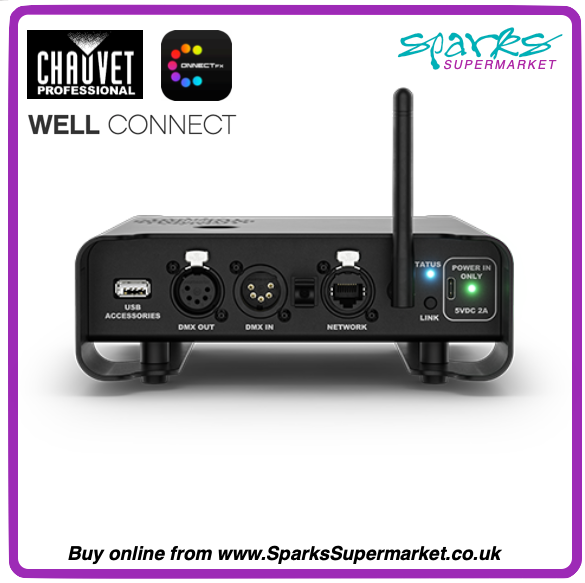

Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45

Control

Protocols: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN

Electrical

Input Voltage: 5 VDC, 2A via USB-C

Battery

Type: Lithium-Ion

Rechargeable: Yes

Charge Time: 8 hours

Battery Life: 12 hours

Power: 12 V, 24 Ah

Certifications / Qualifications

Certifications: CE, FCC, UKCA

IP Rating: IP20 (dry location)

Ambient Temperature: -4 °F to 113 °F (-20 °C to 45 °C)

---

What’s Included

WELL CONNECT

EPSU USB-A

USB-A to USB-C cable

---

Required Accessories

Chauvet CONNECT app (required software)

---

Optional Accessories

VIP Signal Distributor

VIP Media Server

---

ConnectFX Compatibility

ConnectFX delivers dynamic and reliable control when paired with WELL CONNECT.
Available for iOS® (phone and tablet versions), and coming soon for Android.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® in both phone and tablet versions and coming soon for Android
