WELL BATTEN 14

WELL BATTEN 14  -  4 batten kit with charging flightcase

Delivering 14 zones of control for pixel-mapping effects and a pre-programmed library of looks similar to our popular WELL STX. Up to 18 hours of battery life from a batten engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability..

Product Description

At a Glance

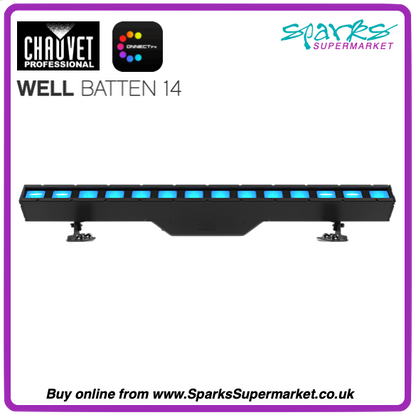

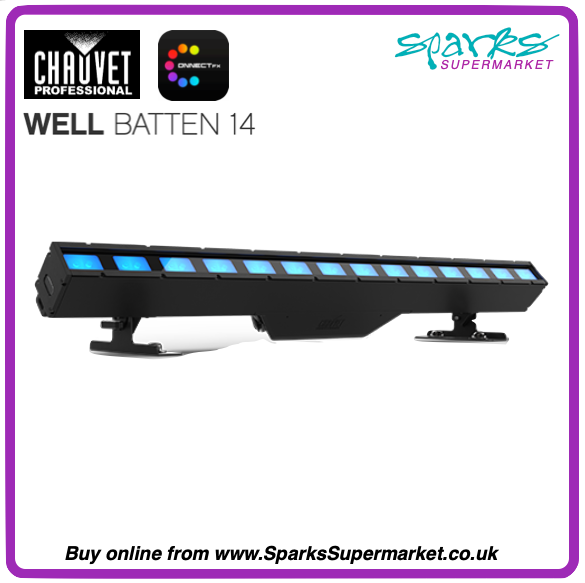

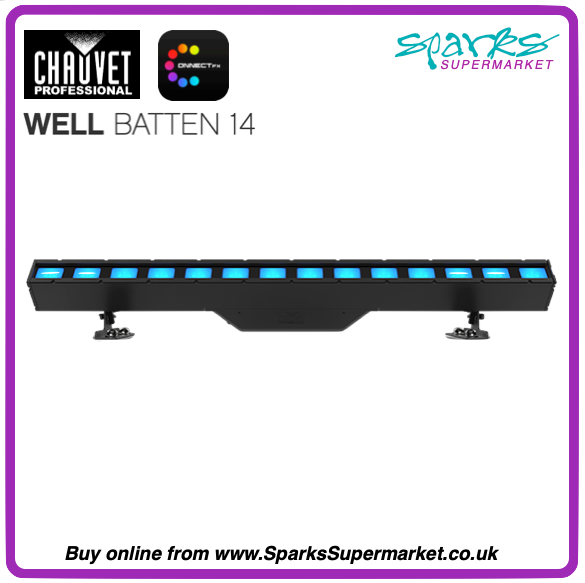

A complete kit of four black, battery-operated, IP65-rated batten fixtures featuring 28 RGB warm white LEDs divided into 14 controllable zones, with a 16° beam angle.

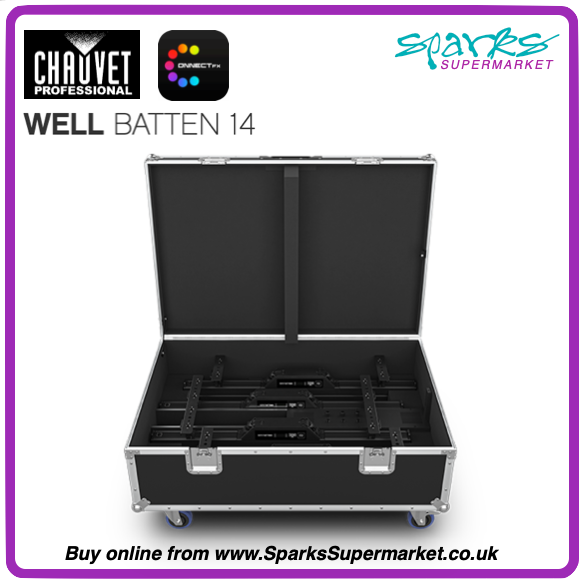

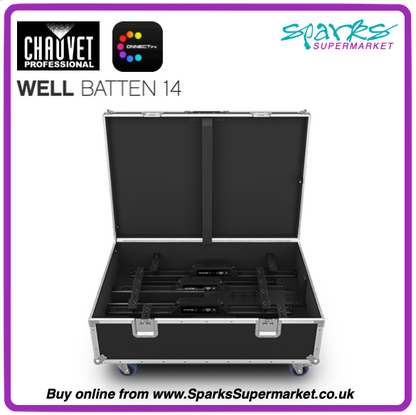

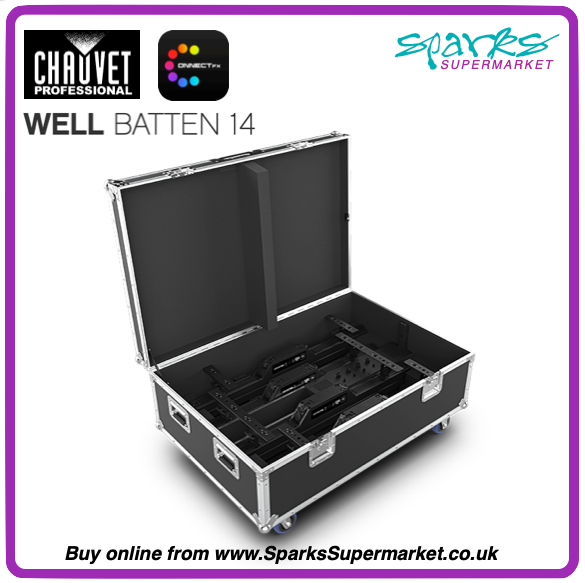

The charging case is designed to allow charging with the lid closed, saving warehouse space. Each fixture offers 14 individual zones for advanced pixel-mapping effects. Select from battery run times of 5, 8, 12, or 18 hours of operation at full output. The built-in charger allows fixtures to operate while charging.

For connectivity, the fixtures include IP65-rated 5-pin DMX in/out and Seetronic PowerKon input/output. Control options include RDM, DMX, CRMX, RF, and easy app control via the WELL CONNECT box. A USB-C port is provided for software updates.

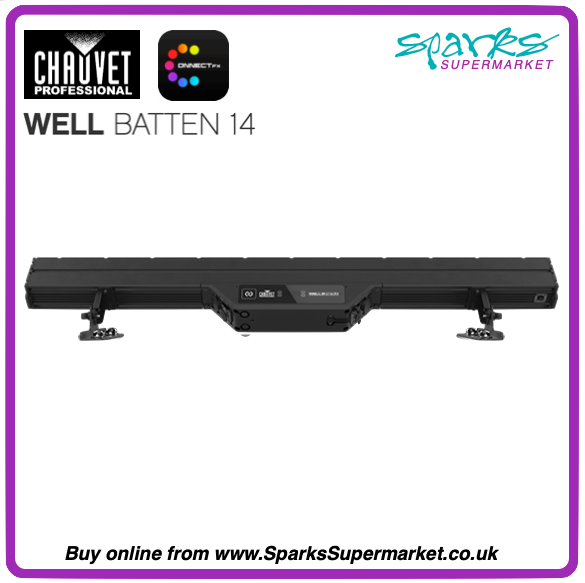

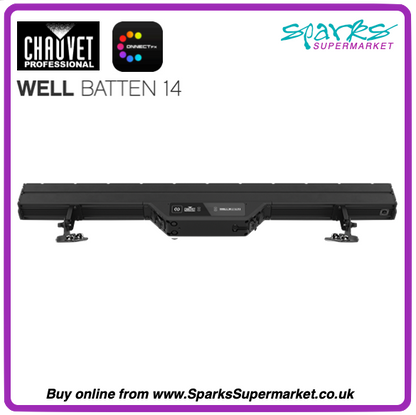

Built for durability, each fixture features a pressure-equalizing M6 Gore valve, a safety cable attachment point, and a clear, easy-to-read OLED display. Additional features include a built-in audio and visual theft alarm, adjustable PWM from 1000 Hz to 25 kHz, and a convenient RF remote. The kit comes with a 4-pack charging case and two glare shields.

---

Specifications

Optical
28 RGBW LEDs (13.2W each) with a 50,000-hour lifespan
Color temperature range: 2600K–10,000K
Beam angle: 16°, Field angle: 33.8°, Cutoff angle: 64.1°
Brightness (AC power): 3854 lm, 1050 lux @ 5m
Brightness (battery modes):

• 5-hour: 2319 lm, 631 lux
• 8-hour: 1437 lm, 392 lux
• 12-hour: 890 lm, 243 lux
• 18-hour: 548 lm, 148 lux

Selectable PWM frequencies: 1000 Hz, 2000 Hz, 3000 Hz, 4000 Hz, 6000 Hz, 25 kHz

Dynamic Effects
Electronic dimmer and shutter/strobe (0–30 Hz)
Standalone color mixing with presets
Four dim modes and dim curves
Built-in automated programs

Construction & Physical
Size: 39.4 × 7.9 × 6.4 in (1001 × 200 × 163 mm)
Weight: 16.4 lb (7.4 kg)
Material: Aluminum diecast
Color: Black

Connections
Power input and output: Seetronic PowerKon IP65 with 5 ft (1.5 m) cable
Data connectors: 5-pin XLR
Software updates: USB-C

Control
Supports DMX, RDM, CRMX, RF, NFC
DMX modes: 5, 8, 15, 66, 85 channels
Wireless compatibility: WDMX G4S and Lumen Radio CRMX

Electrical
Input voltage: 100–240V AC, 50/60 Hz auto-ranging
Power draw (single fixture): 84 W max
Power linking: Up to 32 units at 230V
Power draw (4-pack case): 344 W max

Battery
Type: Lithium Nickel Cobalt AL (Li) (NiCoAL)
Recharge time: 7 hours
Selectable run time: Off, 5, 8, 12, or 18 hours

Certifications
CE, UKCA, FCC, RoHS
IP65 rating for temporary outdoor or wet use
Operating temperature: -4 °F to 113 °F (-20 °C to 45 °C)

---

What's Included

4 WELL Batten 14 units
1 4-slot charging case
1 Basic RF controller
4 Seetronic PowerKon IP65 power cords
8 Omega brackets
8 Glare shields
1 Quick Reference Guide

---

Optional Accessories

Clamps
15° Filter Pack
60° × 10° Filter Pack
PowerKon extension cables
5-pin DMX cables

---

ConnectFX Compatibility

ConnectFX delivers dynamic and reliable control when paired with WELL CONNECT.
Available for iOS® (phone and tablet versions), and coming soon for Android.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® in both phone and tablet versions and coming soon for Android
