WELL PANEL X

WELL PANEL X – 4 Fixture Kit with charging case

Offering an easily deployed and controlled fixture with high CRI that renders skin tones beautifully and make this panel an excellent key light. A higher quantity of smaller LEDs in this design ensures better color mixing than ever before. Up to 18 hours of battery life from a fixture engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a fully-realized road-worthy four-unit kit with built-in charging capability.

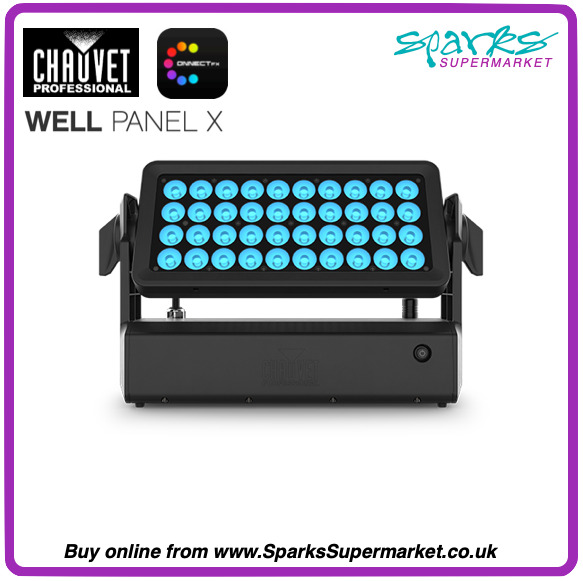

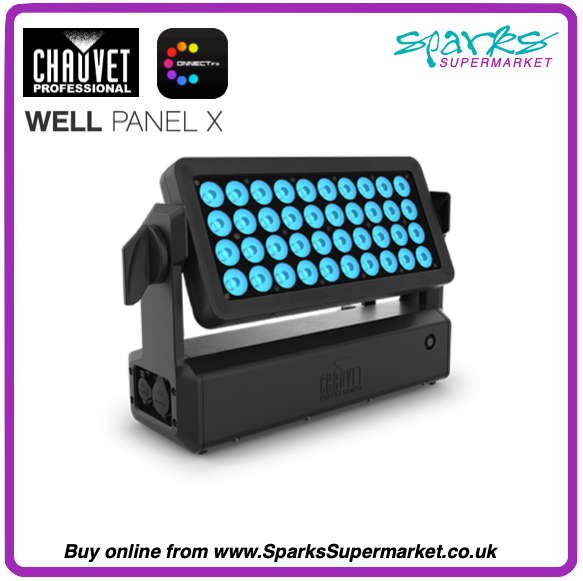

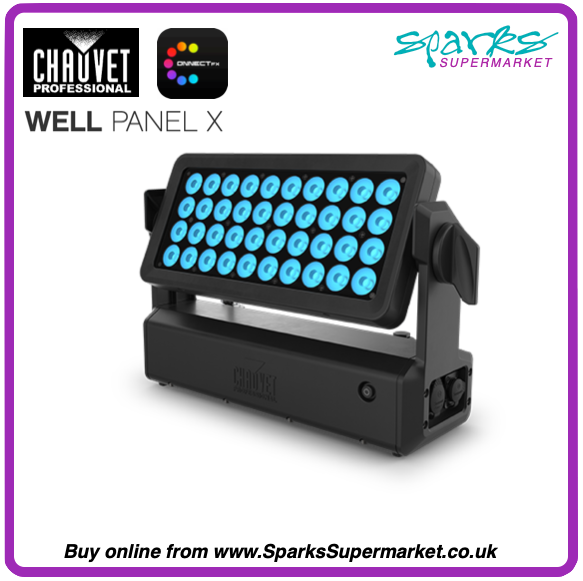

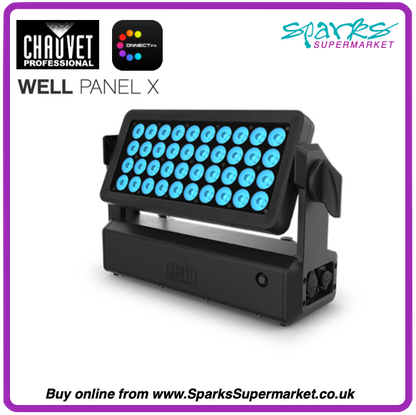

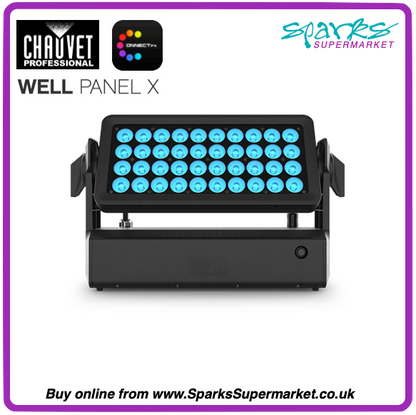

A complete IP65-rated panel-style uplight kit with four black fixtures, each containing 40 RGBWW LEDs delivering powerful output and rich colour mixing with a 10.8° beam angle.

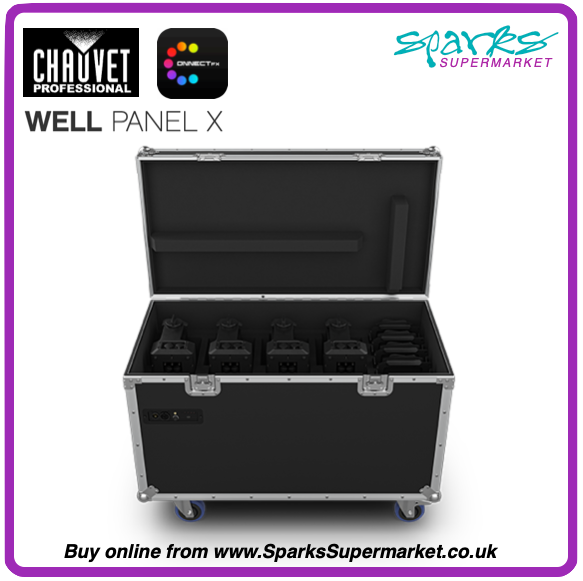

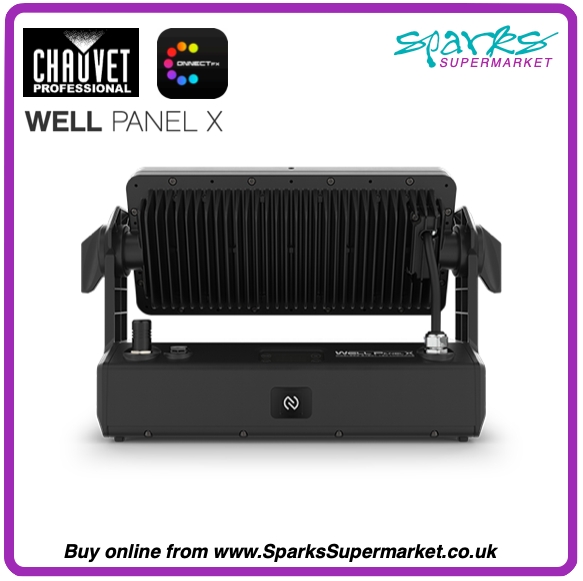

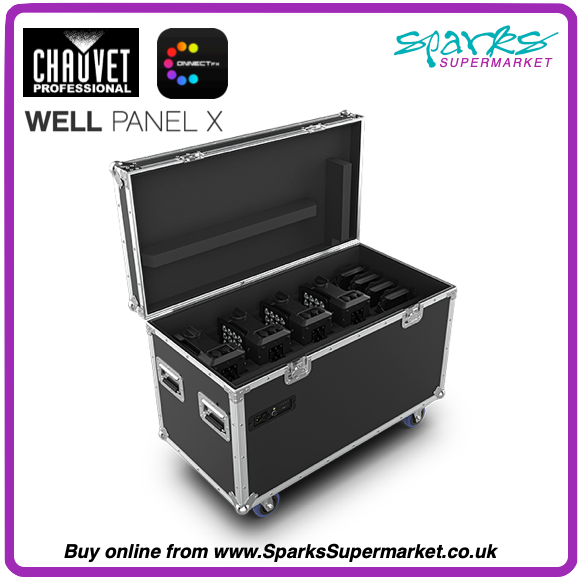

Designed for versatility, the system offers battery runtimes of 5, 8, 12, or 18 hours and can operate while charging. The compact charging case allows charging with the lid closed, saving warehouse space. Fixtures feature wired and wireless control options including DMX, CRMX, RDM, and RF, and connect seamlessly with the WELL CONNECT box and ConnectFX app. Each unit includes a removable split yoke for hanging or floor mounting, an OLED display, IP65-rated DMX and power connections, PWM adjustment, and a built-in safety attachment point.

Fixtures output up to 6865 lumens and 4575 lux at 5 metres (AC powered), with a colour temperature range of 2800K to 6500K and selectable PWM up to 25kHz. Dimensions per fixture are 436 x 135 x 260 mm, weighing 9.43 kg. Power input is 100–240V AC, with lithium-ion batteries charging in 4 hours at 44.4V.

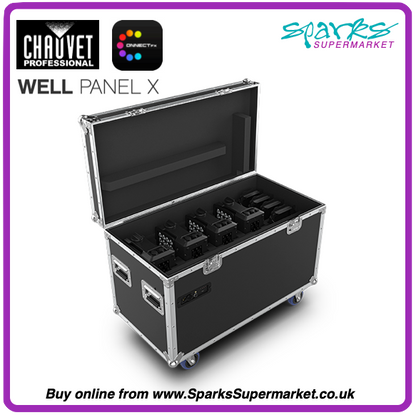

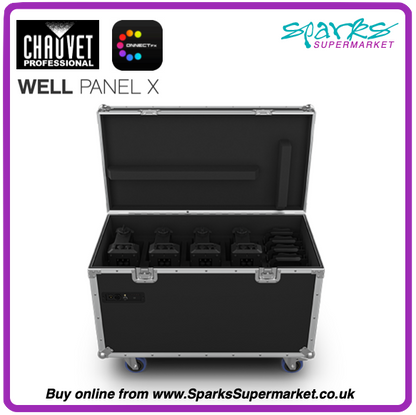

The kit includes four WELL PANEL X fixtures, a 4-slot IP65-rated charging case, RF remote, power cables, Omega brackets, and a quick reference guide.

ConnectFX Compatibility

ConnectFX delivers dynamic and reliable control when paired with WELL CONNECT.
Available for iOS® (phone and tablet versions), and coming soon for Android.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® in both phone and tablet versions and coming soon for Android
