WELL FIT X

WELL FIT X – 6 x Fixture Uplighting Kit with charging case.

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

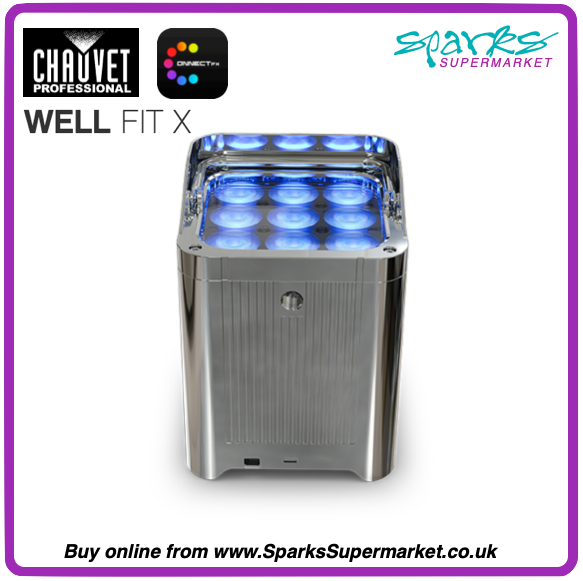

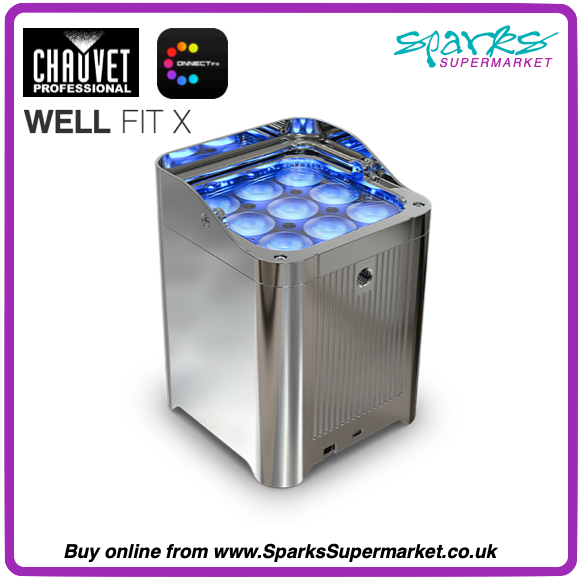

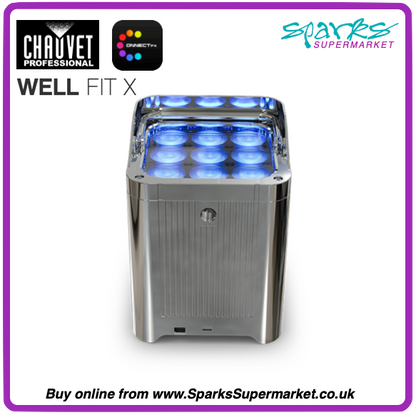

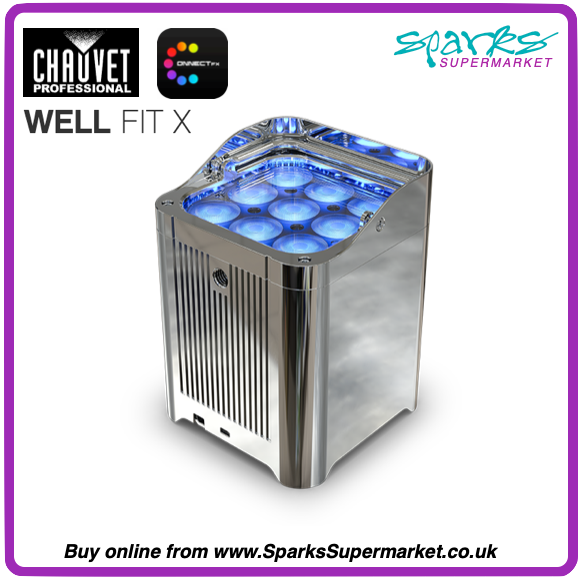

A complete wireless IP65-rated uplight kit featuring six chrome fixtures, each with nine RGBWW LEDs for rich colour mixing and warm white output with an 11.3° beam angle.

This system offers selectable battery runtimes of 5, 8, 12, or 18 hours at full output and can operate while charging. The compact charging case allows charging with the lid closed to save space. Control is available via RDM, CRMX, RF, or the WELL CONNECT app. Additional features include an adjustable foot, built-in theft alarm, OLED display, and USB-C port for software updates.

Each fixture delivers up to 1944 lumens and 1205 lux at 5 metres in 5-hour mode, with a colour temperature range from 2600K to 10,000K and selectable PWM frequencies up to 25kHz. The fixtures measure 126 x 126 x 176 mm and weigh 3.2 kg. Power input ranges from 100 to 240V AC, and the integrated 25.9V lithium-ion batteries fully charge in 1.6 hours.

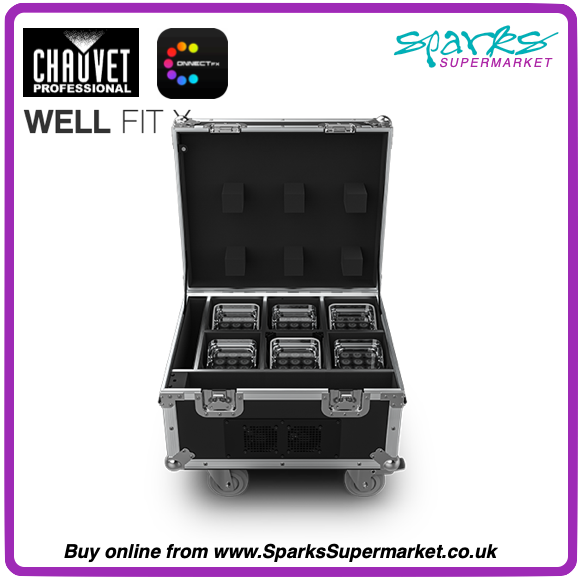

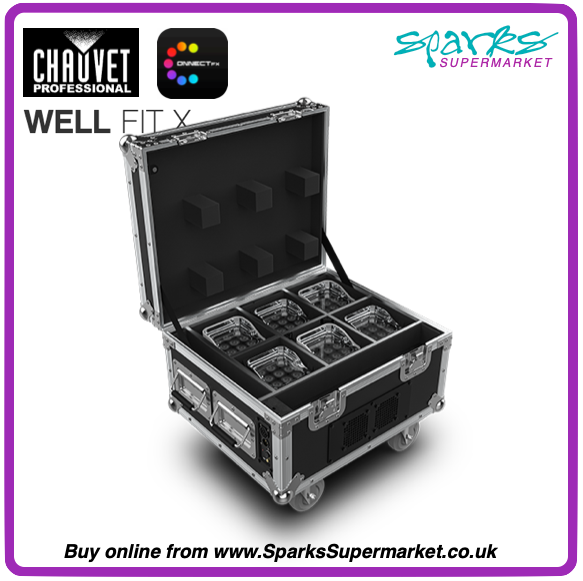

The kit includes six fixtures, a 6-slot IP65-rated charging case, RF remote, and power cable.

ConnectFX Compatibility

ConnectFX delivers dynamic and reliable control when paired with WELL CONNECT.
Available for iOS® (phone and tablet versions), and coming soon for Android.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® in both phone and tablet versions and coming soon for Android
