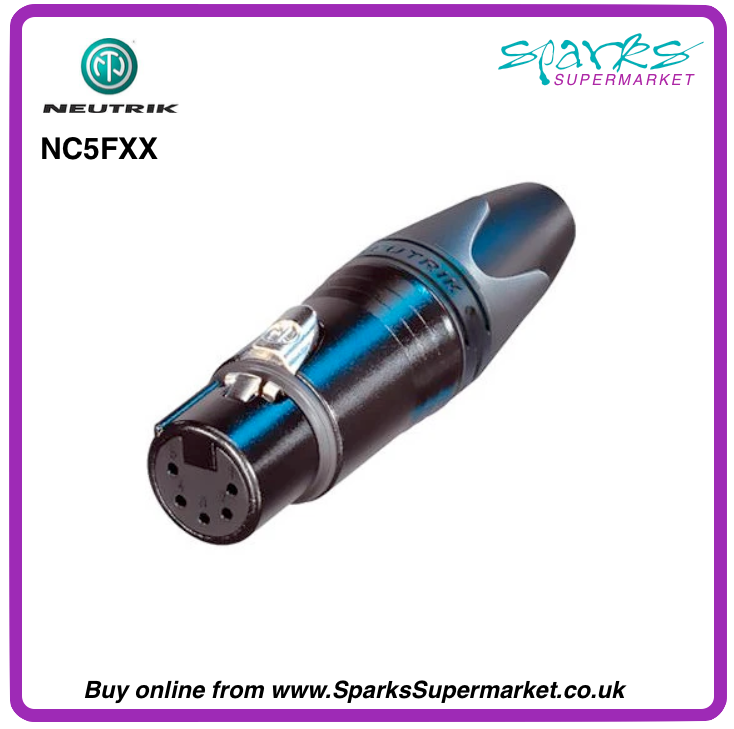

Neutrik NC5FXX-BAG

XLR5 5 Pole XLR Cable Connector Female - Black ( NC5FXX-BAG )

NEUTRIK

  • £6.88


NC5FXX-BAG

5 pole female cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc die cast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Specifications
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: < 50 V
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
